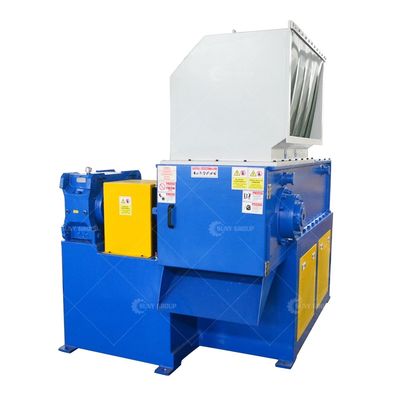

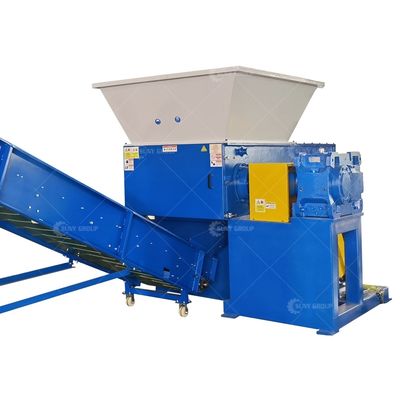

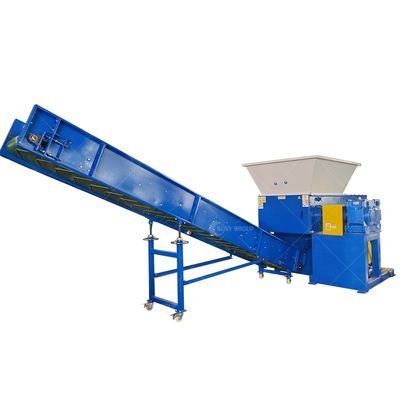

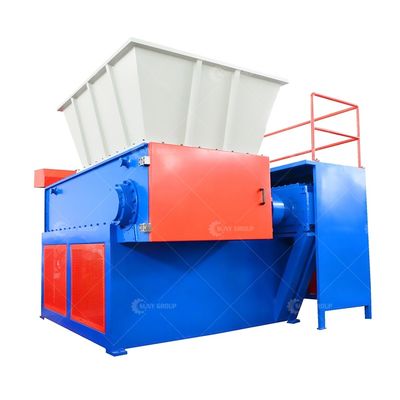

Customizable Blade Materials Single Shaft Shredder for Plastic Lumps Final Size 4-8cm

Large Image : Customizable Blade Materials Single Shaft Shredder for Plastic Lumps Final Size 4-8cm

Product Details:

Place of Origin:	Henan, China
Brand Name:	SUNY
Certification:	CE ISO

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$35,000.00/sets >=1 sets
Packaging Details:	Waste Computer Phone Wire Copper Cable Separator Scrap Copper Cable Granulating Machines are packaged according to the industry standard.
Supply Ability:	20 Set/Sets per Month Copper Wire Separator Scrap Copper Cable Granulating Machine

Contact Now

Customizable Blade Materials Single Shaft Shredder for Plastic Lumps Final Size 4-8cm

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	New Product 2020
Warranty Of Core Components:	1 Year	Core Components:	Gearbox, Motor
Warranty:	1 Year	Material / Metal Processed:	Stainless Steel, Brass / Copper, ALLOY, Carbon Steel, Aluminum
Power (kW):	38	Weight (KG):	3000
Key Selling Points:	Multifunctional	Applicable Industries:	Manufacturing Plant, Single Shaft Shredder
Showroom Location:	Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan, Malaysia, Australia, Egypt, Canada, Turkey, United Kingdom, United States, Italy,	Type:	ZYDZS-800
Capacity:	500-1000Kg/h	Energy Supply:	AC/3A/50HZ, 380 V Or Customerized
Raw Material:	Scrap PCB;TV, Cellphone, Computer Board And Other Print Circuit Board	Final Materials Size:	About 4-8cm
Machine Power:	45Kw	Machine Weight:	3.5ton
Blade Materials:	As Per Your Demands	Port:	We Default Port Is Qingdao, And Other Chinese Ports Is Ok

PARAMETERS

Model	ZY-S600	ZY-S800	ZY-S1000	ZY-S1200	ZY-S1500
Motor Power (kw)	22	45	55	75	110
Rotor-knives (pcs)	26+4	36+6	48+6	58	98
Blade Material	Cr12MoV SKDII D2	Cr12MoV SKDII D2	Cr12MoV SKDII D2	Cr12MoV SKDII D2	Cr12MoV SKDII D2
Rotor Diameter (mm)	260	400	400	500	550
Rotor Speed (r/min)	75	75	75	80	80
Cutting Chamber (mm)	600x600	800x800	1000x1000	1200x1200	1500x1500
Hydraulic Power (kw)	2.2	3	4	5.5	7.5
Cylinder Stroke (mm)	600	800	1000	1200	1500
Machine Size (mm)	1800x1600x1850	2200x1780x2100	2500x1850x2300	3500x2000x2400	4800x2300x2400
Weight (kg)	2200	3700	4500	7000	9800

The above shredder is our standard configuration. For different raw materials to be shredded, the configuration might be different. Please feel free to contact us for detailed information or special request;

SUITABLE RAW MATERIALS

lt is mainly used for shredding and recycling various thick-wall waste materials and leftover materials in the plastic industry. lt can effectively shred and crush large materials ( such as extra-thick head materials, nozzle materials, gate materials, large plastic pipe fittings, large-diameter thick-wall PE pipes, PE head materials, plastic,packaging barrels, large bundles of plastic films, large bundles of woven bags, rolled,films, paper, fibers, plastic boxes, plastic garbage cans, TV casings, computer shells printer housings,copper wires, forklift pallets, plastic clamping plates, plastic turnover boxes, etc. ) and is suitable for crushing and recycling various materials of plastic rubber and wood. Shredded particles can be small to 20mm according to different needs.

ADVANTAGE

1.The main shaft is driven by gear reducer, running smoothly, with low noise and large torque. 2.The material of the knife: Cr12MoV (Japanese brand SKD-11, American brand D2); the moving knife uses the "y" or "one" word installation way to make the knife cut evenly. reduce energy consumption and reduce noise in the whole work; each knife has 4 cutting edges, and then rotates 90 degrees after wear; each set has 2 cutting edges. After wearing, it can be rotated for 180 degrees to continue to use: the blade on the rotor can be disassembled for easy cleaning, maintenance. 3. We can supply different rollers according to different material. Choosing the right rollers can improve machine performance and production efficiency. We can supply the following three rollers: High performance roller, hard material roller and film roller. 4. We have designed three different knives holders according to the material, such as welded knife holders, assembled knife holders and CNC cutting knife holders.

MAIN STRUCTURES

1.Shaft, moving blades, fixed blades, reducer, motors, feeding hopper, discharge port, electric control cabinet control panel, screen, roller, knives holder, ect. 2. After shreddering, the dimension of most large plastic or other material will reduce 30%, some material dimenison after shreddering can up to 50%. (We have arranged many videos. Please contact us freely if you need.)

Single shaft shredder consists of a knife disc and a static knife to complete shredding material. Cutter is composed of a base shaft and several shape quadrilateral knife block

The blade can be used in four directions Blade quality have 9CrSi, C12MoV, SKD-Il，D2 etc.Can be customized according to customer.

The screen can be changed quickly, the aperture of the mesh is able to control the size of the output material. Special screen can be designed according to the type of your raw materials

THydraulic-driven pusher: The hydraulic-driven pusner is equipped with an adjustable guide block and adopts advanced sealing design. Ash chute - remove the dust from the pusher in the shredding process so as to protect the hydraulic system

Double speed hydraulic system: Push the material box high speed back maximize the output.The built-in oil/air cooling device is able to meet the needs of continuous production.

PLC Intelligent control system : When the equipment is overloaded, the knife roller will turn and reverse automatically, and the equipment will stop working automatically when there is no feeding materials.
