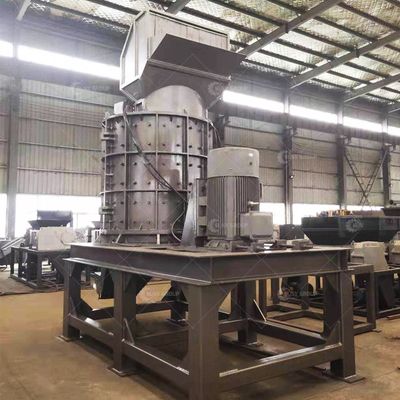

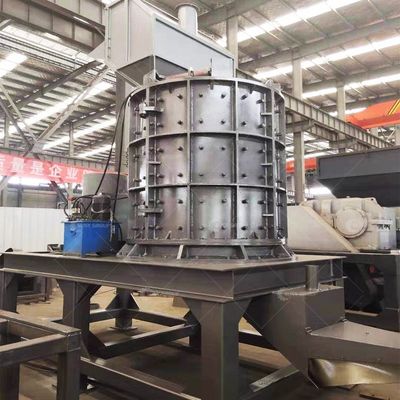

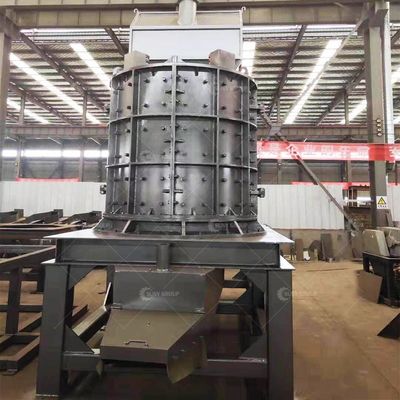

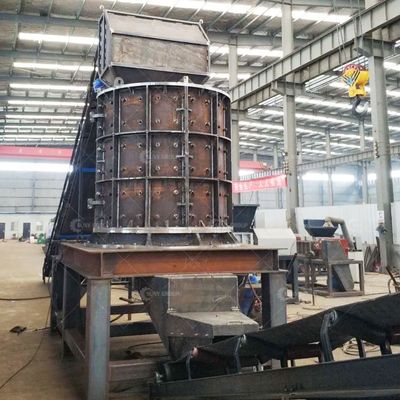

Vertical Shaft Stone Hammer Crusher with 2pcs Hammers and Weight of 12000KG

Large Image : Vertical Shaft Stone Hammer Crusher with 2pcs Hammers and Weight of 12000KG

Product Details:

Place of Origin:	China
Brand Name:	Suny

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$5,000.00 - $55,000.00/sets
Packaging Details:	Waste Computer Phone Wire Copper Cable Separator Scrap Copper Cable Granulating Machines are packaged according to the industry standard.
Supply Ability:	20 Set/Sets per Month Copper Wire Separator Scrap Copper Cable Granulating Machine

Contact Now

Vertical Shaft Stone Hammer Crusher with 2pcs Hammers and Weight of 12000KG

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	New Product 2020
Warranty Of Core Components:	1 Year	Core Components:	Motor, Gear
Warranty:	1 Year	Material / Metal Processed:	Stainless Steel, Brass / Copper, ALLOY, Carbon Steel, Aluminum
Power (kW):	2.2	Weight (KG):	12000
Key Selling Points:	High Productivity	Applicable Industries:	Manufacturing Plant
Showroom Location:	Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan, Japan, Malaysia, Australia, Egypt, Canada, Turkey, United Kingdom, United States,	Capacity:	800-1000kg/H
Power:	75kw*2	Spindle Speed:	650
Rotating Diameter:	1000mm	Number Of Hammers:	2/4/pcs
Unit Weight Of Hammer Head:	20-30kg/h	Number Of Hobs:	36pcs
Unit Weight Of Hob:	40kg	Kicking Device:	Active Type
Hammer Head Material:	High Manganese Alloy Steel	Port:	We Default Port Is Qingdao, And Other Chinese Ports Is Ok

PARAMETERS

Model	ZY1000	ZY1200	ZY1500
Capacity(kg/h)	800-1000	1500-2000	2000-3000
Power(kw)	75kw*2	90kw*2	132kw*2
Spindle speed(rpm)	650	650	672
Rotating diameter(mm)	1000mm	1500mm	1500mm
Number of hammers	2pcs	4pcs	2pcs
Unit weight of hammer head	20kg	25kg	30kg
Number of Hobs	36pcs	36pcs	36pcs
Unit weight of hob	40kg	40kg	42kg
Kicking device	Active type	Active type	Active type
Power of hydraulic station	2.2kw	2.2kw	2.2kw
Hammer head material	High manganese alloy steel	High manganese alloy steel	High manganese alloy steel
Equipment weight(tons)	9t	12t	18t
Equipment size(mm)	1200* 1200*3000	1500* 1500*3200	1800* 1800*3500

STRUCTURE

The vertical metal crusher mainly uses the upper hammer structure to break materials by rotating at high speed. In the process of material automatic falling, the material is finely crushed and rolled by the gap between the lower hob and the crushing cavity.Meet the discharge requirements. Vertical crusher is characterized by its structure, high crushing speed, high efficiency and easy maintenance.

APPLICATION

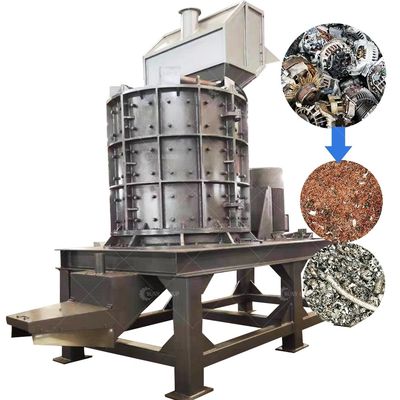

The main application materials are: scrap metal, aluminum profile, motor stator, rotor and other waste mixed metal materials.

CUSTOMER WORKSITE

Our vertical metal broken gold is sold to many countries and regions around the world. Get unanimous praise from customers. If you want to get accurate equipment configuration and recycling plan acording to your own materials and output, please contact us directly.
