Product Details:
|
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Gear |
| Warranty: | 1 Year | Material / Metal Processed: | Stainless Steel, Brass / Copper, ALLOY, Carbon Steel, Aluminum |
| Power (kW): | 2.2 | Weight (KG): | 12000 |
| Key Selling Points: | High Productivity | Applicable Industries: | Manufacturing Plant |

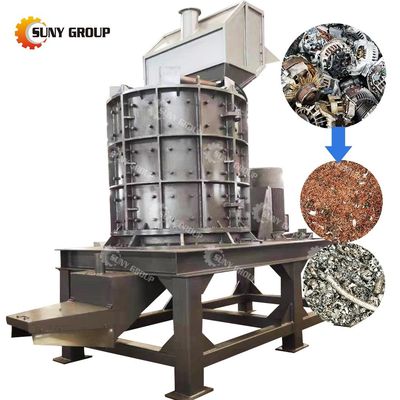

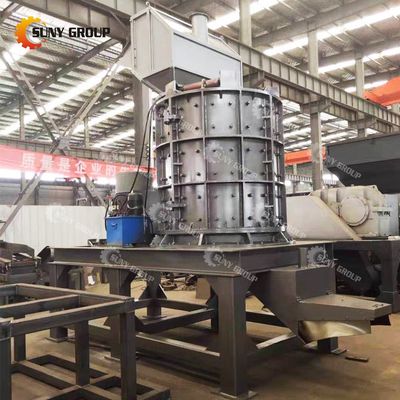

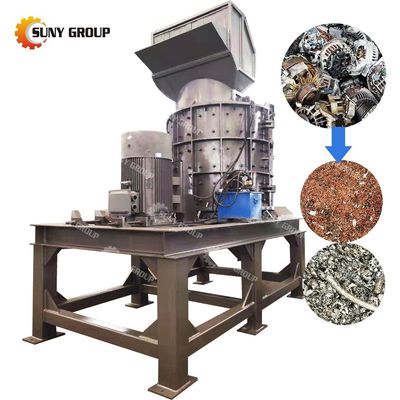

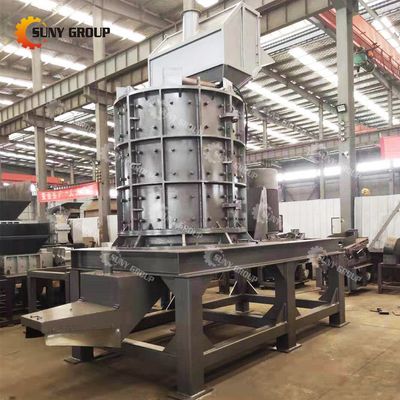

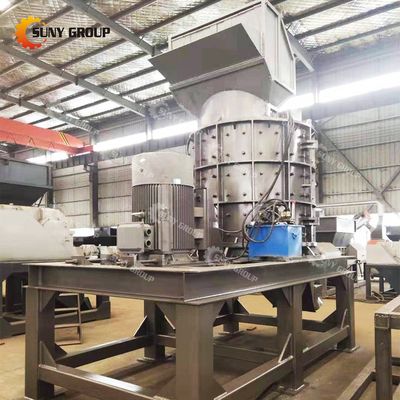

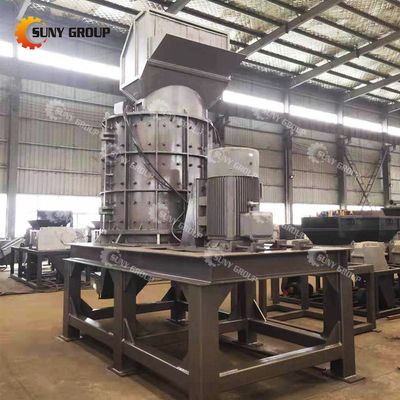

| Showroom Location: | Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan, Japan, Malaysia, Australia, Egypt, Canada, Turkey, United Kingdom, United States, | Name: | Vertical Type Combination Hammer Crusher For Waste Metal |
| Application: | Hammer Crusher | Capacity: | 800-1000kg/H |
| Power: | 75kw*2 | Spindle Speed: | 650 |
| Rotating Diameter: | 1000mm | Number Of Hammers: | 2/4/pcs |
| Unit Weight Of Hammer Head: | 20-30kg/h | Unit Weight Of Hob: | 40kg |
| Hammer Head Material: | High Manganese Alloy Steel | Port: | We Default Port Is Qingdao, And Other Chinese Ports Is Ok |
Model | ZY1000 | ZY1200 | ZY1500 |
Capacity(kg/h) | 800-1000 | 1500-2000 | 2000-3000 |
Power(kw) | 75kw*2 | 90kw*2 | 132kw*2 |
Spindle speed(rpm) | 650 | 650 | 672 |
Rotating diameter(mm) | 1000mm | 1500mm | 1500mm |
Number of hammers | 2pcs | 4pcs | 2pcs |
Unit weight of hammer head | 20kg | 25kg | 30kg |
Number of Hobs | 36pcs | 36pcs | 36pcs |
Unit weight of hob | 40kg | 40kg | 42kg |
Kicking device | Active type | Active type | Active type |
Power of hydraulic station | 2.2kw | 2.2kw | 2.2kw |
Hammer head material | High manganese alloy steel | High manganese alloy steel | High manganese alloy steel |
Equipment weight(tons) | 9t | 12t | 18t |
Equipment size(mm) | 1200* 1200*3000 | 1500* 1500*3200 | 1800* 1800*3500 |
