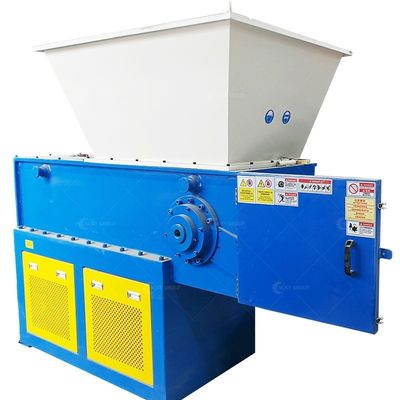

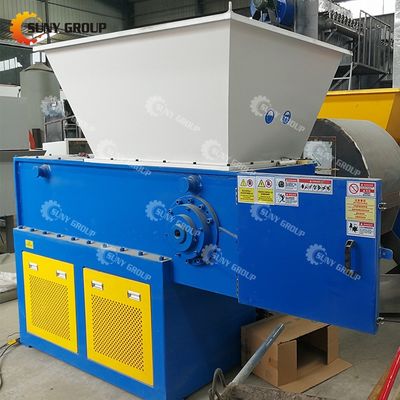

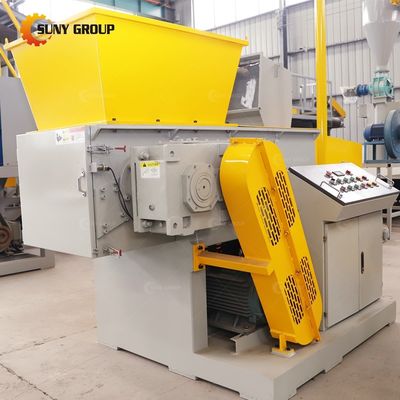

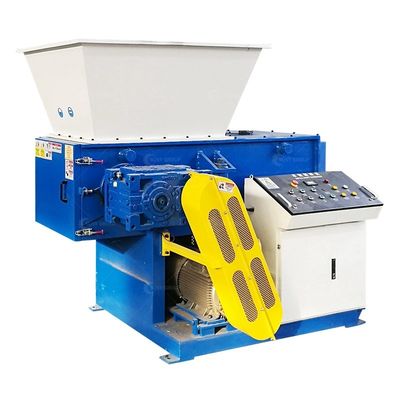

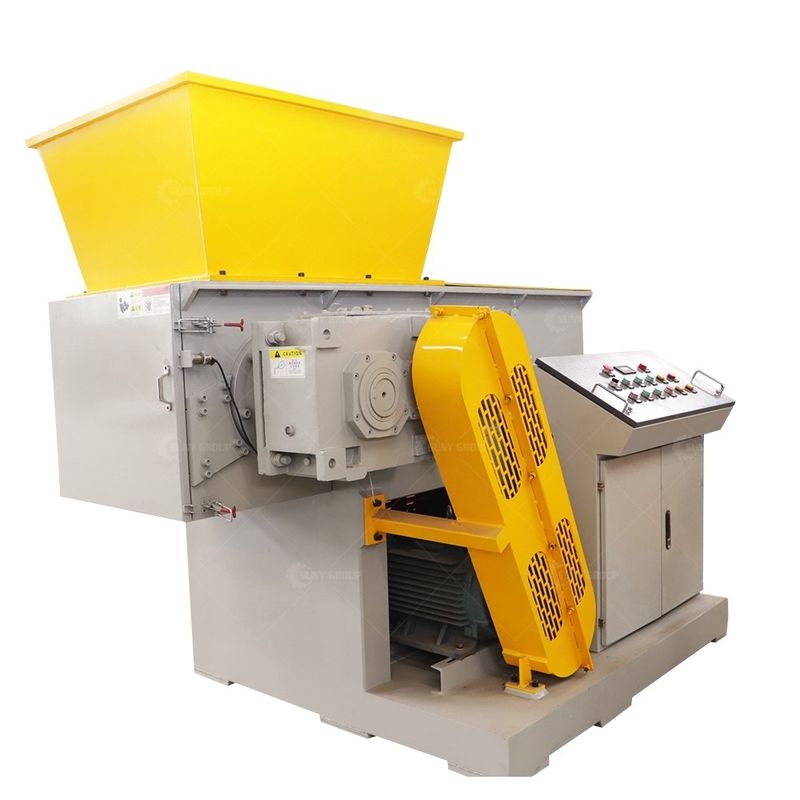

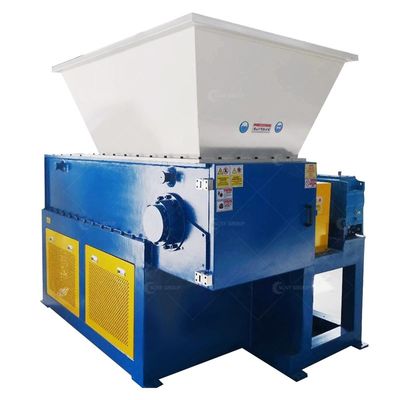

High Capacity ABS Material Shredding Machine for Stainless Steel Processing Solutions

Large Image : High Capacity ABS Material Shredding Machine for Stainless Steel Processing Solutions

Product Details:

Place of Origin:	Henan, China
Brand Name:	SUNY
Certification:	CE ISO

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$5,000.00 - $65,000.00/sets
Packaging Details:	Waste Computer Phone Wire Copper Cable Separator Scrap Copper Cable Granulating Machines are packaged according to the industry standard.
Supply Ability:	20 Set/Sets per Month Copper Wire Separator Scrap Copper Cable Granulating Machine

Contact Now

High Capacity ABS Material Shredding Machine for Stainless Steel Processing Solutions

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	New Product 2020
Warranty Of Core Components:	1 Year	Core Components:	Motor
Warranty:	1 Year	Material / Metal Processed:	Stainless Steel, Brass / Copper, ALLOY, Carbon Steel, Aluminum
Power (kW):	38	Weight (KG):	3000
Key Selling Points:	Multifunctional	Applicable Industries:	Manufacturing Plant, Single Shaft Shredder
Showroom Location:	Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan, Malaysia, Australia, Egypt, Canada, Turkey, United Kingdom, United States, Italy,	Type:	ZYDZS-800
Capacity:	500-1000Kg/h	Energy Supply:	AC/3A/50HZ, 380 V Or Customerized
Raw Material:	Scrap PCB;TV, Cellphone, Computer Board And Other Print Circuit Board	Final Materials Size:	About 4-8cm
Machine Power:	45Kw	Blade Materials:	As Per Your Demands
Inlet Size:	As Per Your Demands	After-sales Service Provided:	Field Installation, Commissioning And Training
Port:	We Default Port Is Qingdao, And Other Chinese Ports Is Ok

Single Shaft Shredder Machine

Single Shaft Shredder Machine adopts European advanced technology, is mainly applied in the crushing and recycling of various thick wall scrap materials and leftover materials in the plastic and rubber industry, can effectively crush extra thick, strong toughness and large materials.

SUITABLE RAW MATERIALS

Raw Materials of Our Plastic Pipe Shredding Waste Cable Single Shaft Shredder Machine for Recycle Plastic bottles, Cardboard. Woven bags. Plastic lumps like PP. PE, PET. PC. ABS. Nylon, Plastic pipes. Film. Plastic moulds,textiles. Woven bags, Electronic Waste. Cable, Aluminum cans, Paper,Wood. Sponge, foam, etc.

WORKING PRINCIPLE

Plastic Pipe Shredding Waste Cable Single Shaft Shredder Machine for Recycle consists of a knife disc and a static knife to complete shredding material. Cutter is composed of a base shaft and several shape quadrilateral knife block.

TECHNICAL PARAMETERS

Model	ZY-S600	ZY-S800	ZY-S1000	ZY-S1200	ZY-S1500
Motor Power (kw)	22	45	55	75	110
Rotor-knives (pcs)	26+4	36+6	48+6	58	98
Blade Material	Cr12MoV SKDII D2	Cr12MoV SKDII D2	Cr12MoV SKDII D2	Cr12MoV SKDII D2	Cr12MoV SKDII D2
Rotor Diameter (mm)	260	400	400	500	550
Rotor Speed (r/min)	75	75	75	80	80
Cutting Chamber (mm)	600x600	800x800	1000x1000	1200x1200	1500x1500
Hydraulic Power (kw)	2.2	3	4	5.5	7.5
Cylinder Stroke (mm)	600	800	1000	1200	1500
Machine Size (mm)	1800x1600x1850	2200x1780x2100	2500x1850x2300	3500x2000x2400	4800x2300x2400
Weight (kg)	2200	3700	4500	7000	9800

NOTE:

The above shredder is our standard configuration. For different raw materials to be shredded, the configuration might be different. Please feel free to contact us for detailed information or special request.

MACHINE FEATURES

Plastic Pipe Shredding Waste Cable Single Shaft Shredder Machine for Recycle is suitable to recycle a variety of bulk solid materials, refractory materials, plastic containers and plastic barrels, plastic films, fibers, paper. Shredded particles can be small to 20mm according to different needs.

Single shaft shredder consists of a knife disc and a static knife to complete shredding material.

Blade quality have 9CrSi, Cr12MoV, SKD- II, D2 etc. Can be customized according to customer.

Special screen can be designed according to the type of your raw materials.

Hydraulic-driven pusher adopts advanced sealing design, can remove the dust in shredding process.

CUSTOMER SITE

FAQ

Q: Why Choose Us?

1). Several Year's Experience
We have rich experience in equipment manufacturing. Our machines have high reputation both at home and abroad (Such as the Middle East, Southeast Asia, Africa and so on more than 10 countries and regions.)

2). Manufacturer, Not Dealer
Factory direct sale makes price more competitive.Customers are always welcome to visit our factory for machine test.

3). Fast Delivery:
We promise the goods can be shipped out on delivery date after confirmation of the order.

Q: How do I know the quality of your machine?

A: You can send your sample scrap materials to us and we will test the machine for you without charging the fees. And we can send the machine test video to you. We also warmly welcome you to visit our factory to test our machine personally.

Q: When we only purchase one shredder machine production line, can we use it to shred other scrap materials like?

A: Yes, you can.It depends on the difference of blades teeth and quantity, which can be customized.

Q: Which brand of motor will you use?

A: We use domestic motor manufatured by Chinese-famous suppliers, but you can choose Siemens or other brand motor. Don't worry about our machine's quality.

Q: Will you dispatch the engineer to guide installation?

A: Yes, according to the customer's requirement, we will dispatch engineers to guide installation and traning about the operation of the machine.
