Environmentally Friendly Aluminum Composite Panel Sorting and Recycling Production Line

Certification
China Henan Zhengyang Machinery Equipment Co., Ltd. certification
I'm Online Chat Now

Environmentally Friendly Aluminum Composite Panel Sorting and Recycling Production Line

Environmentally Friendly Aluminum Composite Panel Sorting and Recycling Production Line
Environmentally Friendly Aluminum Composite Panel Sorting and Recycling Production Line Environmentally Friendly Aluminum Composite Panel Sorting and Recycling Production Line Environmentally Friendly Aluminum Composite Panel Sorting and Recycling Production Line Environmentally Friendly Aluminum Composite Panel Sorting and Recycling Production Line Environmentally Friendly Aluminum Composite Panel Sorting and Recycling Production Line Environmentally Friendly Aluminum Composite Panel Sorting and Recycling Production Line

Large Image :  Environmentally Friendly Aluminum Composite Panel Sorting and Recycling Production Line

Product Details:
Place of Origin: Henan, China
Brand Name: Suny
Certification: CE ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $5,000.00 - $35,000.00/sets
Packaging Details: Waste Computer Phone Wire Copper Cable Separator Scrap Copper Cable Granulating Machines are packaged according to the industry standard.
Supply Ability: 5 Set/Sets per Month Copper Wire Separator Scrap Copper Cable Granulating Machine

Environmentally Friendly Aluminum Composite Panel Sorting and Recycling Production Line

Description
Condition: New Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year Core Components: PLC
Warranty: 1 Year Power (kW): 55
Weight (KG): 2500 Key Selling Points: Automatic
Applicable Industries: Manufacturing Plant, Aluminum Plastic Separating Plant Showroom Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Alge
Name: Aluminum Plastic Material Scrap Recycling Machine Application: Aluminum-plastic Waste Treatment
Capacity: 200-1000kg/h Valtage: 220/380V
Wheight: 5.8t Color: Requirement
Final Product: Metal Powder&Plastic Powder Power: 85kw
Keywords: Aluminum Plastic Separating Plant Port: We Default Port Is Qingdao, And Other Chinese Ports Is Ok

ALUMINUM PLASTIC CRUSHING SEPARATING PLANT


The function is to separate and recover the waste aluminum and plastic from the scrap aluminum plastic composites.
Environmentally Friendly Aluminum Composite Panel Sorting and Recycling Production Line 0
Our Aluminum Plastic Crushine Separating Plant can be used for recycling all kinds of aluminum and plastic composite such as medical blister, aluminum plastic plate, aluminum plastic foil, and aluminum plastic package bags etc.
Environmentally Friendly Aluminum Composite Panel Sorting and Recycling Production Line 1
TECHNICAL PARAMETERS
Model
Capacity (Kg/H)
Power (Kw)
Weight (T)
ZYWAP-300
300
62
7.5
ZYWAP-500
500
98
12.5
ZYWAP-1000
1000
170
19.5

NOTE:

1. The Price depends on your capacity and configuration of the machinery;
2. Working voltage:380±10V(415V ,440V also can be custom)


RAW MATERIALS AND FINAL PRODUCTS


The following picture is the result of testing the Aluminum Plastic Crushine Separating Plant by some customers.We will save and send samples of sorted aluminum powder and plastic powder for our customers, You can send your materials to us and we will test the machine for you without charging any fees.
Environmentally Friendly Aluminum Composite Panel Sorting and Recycling Production Line 2

Aluminum powder and plastic powder from medical plates

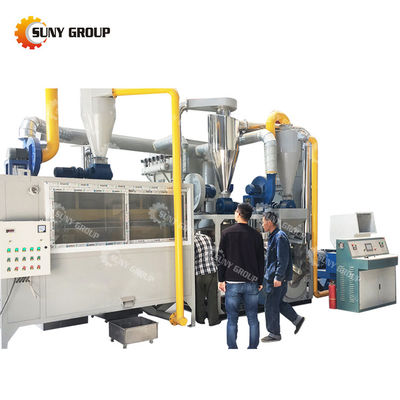

Welcome to our factory and test the machine with the materials you specified
Environmentally Friendly Aluminum Composite Panel Sorting and Recycling Production Line 3


Compare With Other Suppliers


India customer visited our factory for Aluminum Plastic Crushine Separating Plant. He visited several suppliers during his tour in China and compared the aluminum powder separated from our system with those of other suppliers. He is quite satisfied with our equipment.
Environmentally Friendly Aluminum Composite Panel Sorting and Recycling Production Line 4
Note: The more uniform of material particles after milling, the better the sorting result.


PROCESS DESCRIPTION


The aluminum and plastic materials firstly crushed by the knife crusher into 10mm pieces, and then grinding by the water cooling turbo type grinding machine into aluminum and plastic fine powders. Then separated by the rotary screen, the big size will back into the grinding machine and the fine powders will into the electrostatic separator, finally the aluminum and plastic would be separated.
Environmentally Friendly Aluminum Composite Panel Sorting and Recycling Production Line 5
PRODUCT DISPLAY
Environmentally Friendly Aluminum Composite Panel Sorting and Recycling Production Line 6
Environmentally Friendly Aluminum Composite Panel Sorting and Recycling Production Line 7
Environmentally Friendly Aluminum Composite Panel Sorting and Recycling Production Line 8
Environmentally Friendly Aluminum Composite Panel Sorting and Recycling Production Line 9
CUSTOMER FEEDBACK
Environmentally Friendly Aluminum Composite Panel Sorting and Recycling Production Line 10
Environmentally Friendly Aluminum Composite Panel Sorting and Recycling Production Line 11
Environmentally Friendly Aluminum Composite Panel Sorting and Recycling Production Line 12
Environmentally Friendly Aluminum Composite Panel Sorting and Recycling Production Line 13
Environmentally Friendly Aluminum Composite Panel Sorting and Recycling Production Line 14
Environmentally Friendly Aluminum Composite Panel Sorting and Recycling Production Line 15
Environmentally Friendly Aluminum Composite Panel Sorting and Recycling Production Line 16
