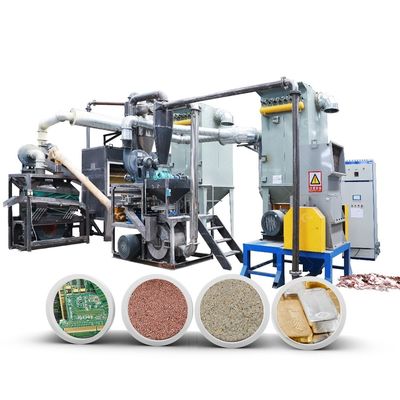

1000KG Weight Pcb Circuit Board Recycling Machine for Computer Pcb Waste Disposal

Large Image : 1000KG Weight Pcb Circuit Board Recycling Machine for Computer Pcb Waste Disposal

Product Details:

Place of Origin:	Henan, China
Brand Name:	SUNY

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$5,000.00 - $35,000.00/sets
Packaging Details:	Waste Computer Phone Wire Copper Cable Separator Scrap Copper Cable Granulating Machines are packaged according to the industry standard.
Supply Ability:	20 Set/Sets per Month Copper Wire Separator Scrap Copper Cable Granulating Machine

Contact Now

1000KG Weight Pcb Circuit Board Recycling Machine for Computer Pcb Waste Disposal

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	New Product 2020
Warranty Of Core Components:	1 Year	Core Components:	PLC
Warranty:	1 Year, 1 Year	Power (kW):	25
Weight (KG):	1000	Key Selling Points:	High Productivity
Applicable Industries:	Manufacturing Plant	Showroom Location:	Egypt, Turkey, United States, Philippines, Brazil, Peru, India, Mexico, Thailand, Kenya, Argentina, South Korea, Malaysia, Australia
Name:	Waste PCB Scrap Dismantling Machine	Capacity:	150kg-1000kg
Voltage:	380V/220V	Raw Material:	Computer Board
Product Name:	Computer Board Dismantling Machine	Color:	Cutomerized
Separation Rate:	99.99%	Usage:	Computer Board Dismantling Machine
Application:	Computer Board Dismantling Machine	Port:	We Default Port Is Qingdao, And Other Chinese Ports Is Ok

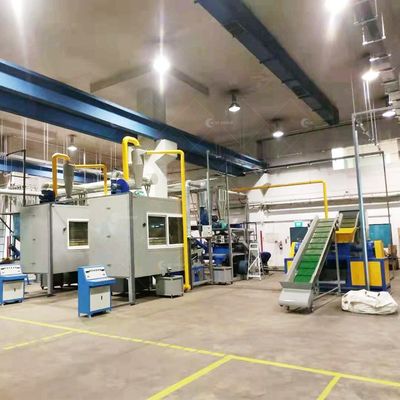

WASTE PCB RECYCLING PLANT

PRODUCT APPLICATION

Waste PCB Recycle Plant is used to recycle all kinds of Printed Circuit boards, such as the computer boards, cell phone boards, TV boards, copper-clad laminate, and other household appliances, and the separation of leftover material of the mixed metal and nonmetal materials.

FINAL PRODUCTS

Because of the high value of the metals, fiber and resin, there is no doubt that this plant not only help to change waste into treasure, but also bring great economic benefits.Through years of practice and theoretical analysis, we obtain the best separation result, the separating purity can be reached to 99%.

TECHNICAL PARAMETERS

Model	ZYPCB-300	ZYPCB-500	ZYPCB-1000
Capacity	300 Kg/H	500 Kg/H	1000 Kg/H
Power	102 Kw	134 Kw	194 Kw
Weight	15 Ton	20 Ton	30 Ton
Dimension (m)	2055	2565	3065

NOTE:

Working Voltage:380V, 415V ,440V or can be customized.
(If you want more detailed parameters and quotations, please contact us)

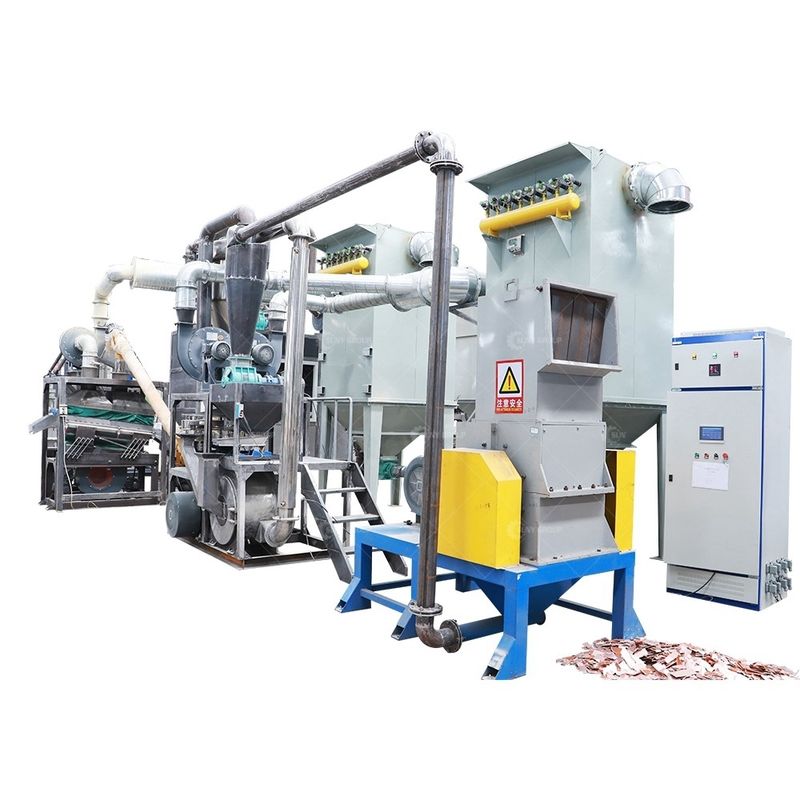

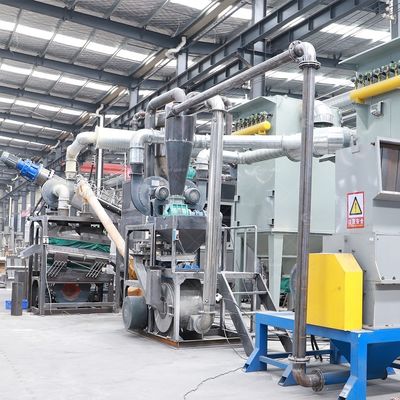

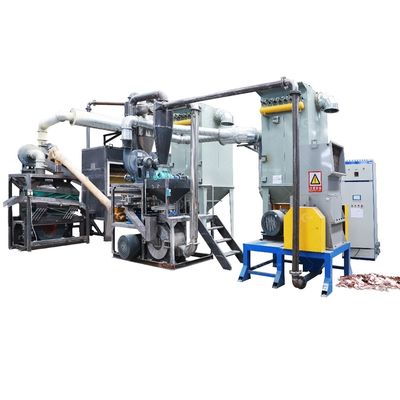

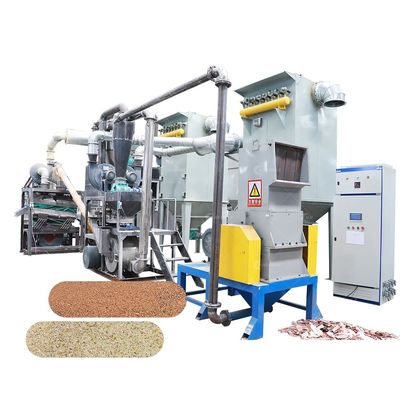

PRODUCT STRUCTURE

The Waste PCB Recycle Plant consists of shredding system, milling system, sorting system and dust collection system, the whole process is controlled by PLC.

The first crushing machine we choose the double shafts shredder, and the second crushing machine we use the hammer crusher, and the third crushing machine we use the high speed turbine grinding machine, the material after shredding, crushing and grinding will be separated by the air separator and the electrostatic separator.

PRODUCT FEATURES

The Waste PCB Recycle Plant adopts PLC control system, suitable structure and layout, stable performance and low noise;

Dual Crushing System Ensures the Uniformity of Particle Sizes
