99.99% Pure Copper Electrolytic Refining Plant with DJ-500 Copper Purification System

Large Image : 99.99% Pure Copper Electrolytic Refining Plant with DJ-500 Copper Purification System

Product Details:

Place of Origin:	Henan, China
Brand Name:	SUNY
Certification:	ISO/CE

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$50,000.00 - $450,000.00/sets
Packaging Details:	packaged according to the industry standard.
Supply Ability:	20 Set/Sets per Month

Contact Now

99.99% Pure Copper Electrolytic Refining Plant with DJ-500 Copper Purification System

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	New Product
Warranty Of Core Components:	1 Year	Core Components:	PLC, Engine, Motor
Warranty:	1 Year	Weight (KG):	2000
Key Selling Points:	High Productivity	Applicable Industries:	Manufacturing Plant, Copper Wire Recycling Plant
Showroom Location:	Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Peru, Indonesia, India, Mexico, Russia, Spain, Thailand, Morocco, South Korea, Chile, UAE, Sri Lanka, Bangladesh, South Africa, Uzbekistan, Japan, Malaysia	Name:	Copper Cathode Electrolysis Machine
Application:	Copper Electrolysis Machine	Model:	DJ-500
Electrolytic Cycle:	15 Days/48H	Capacity:	200-500
Feature:	Environmental-friendly Fast	Raw Material:	Copper Metal Powder
Final Product:	Pure Copper	Delivery Time:	7-10 Days Production
Port:	We Default Port Is Qingdao, And Other Chinese Ports Is Ok

WHY COPPER ELECTROLYSIS ?

Copper is a good conductor of electricity, and is used extensively to make electrical wiring and components. The purification of copper is a form of recycling. Copper is purified further using electrolysis and we call it Copper Electrorefining (electrolytic refining).
In industry this is carried out on a massive scale. The electrolytic copper production is processed in the huge copper electrolytic tank fulfilled with copper electrolytic solution. Even the best chemical method cannot remove all the impurities from
the copper, but with electrolytic refining it is possible to produce 99.99% pure copper (whatever method is used to manufacture copper from its ore, its final purification is by electrolysis).

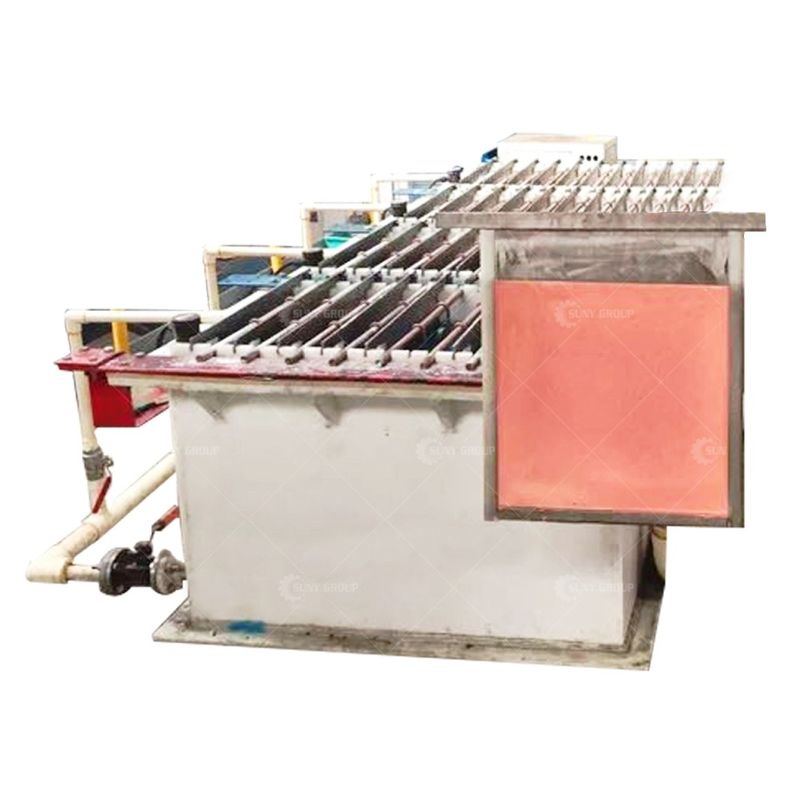

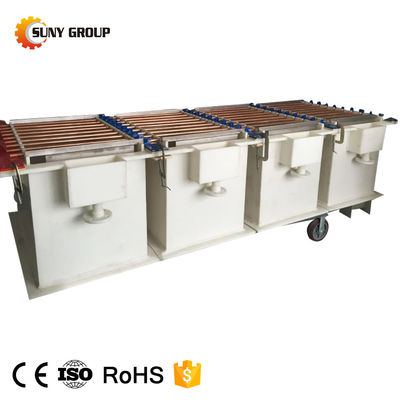

Copper Electrolysis Refining Plant

Anode plates are hung by their "handles" in electrolytic copper refining tank. Pure copper cathode sheets suspended on solid
copper bars are inserted into the same tank, one sheet between each anode. When an electric current is passed from the anodes
through the electrolyte to the cathodes, copper from the anodes moves into the solution and is plated onto the starter sheet.
Impurities from the anodes settle to the bottom of the tank.

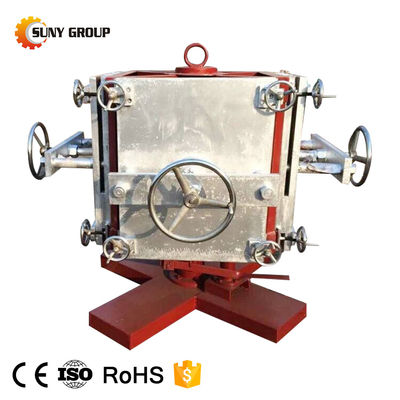

Copper Anodes(Plates) Casting Machine

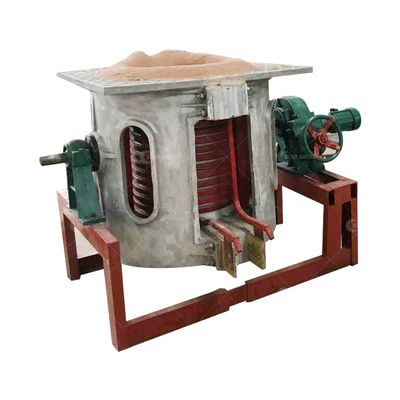

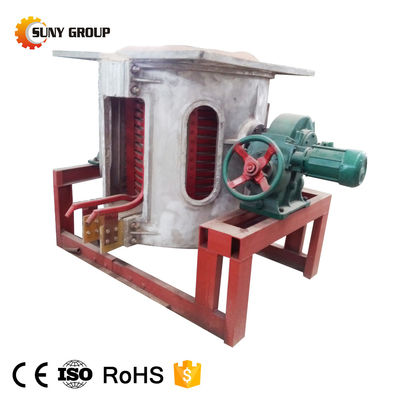

The copper anode will be casting into anode plates in molds semi-automatically. After pretreatment removing of tin, lead, iron,
aluminum starts charging of the copper material into the furnace which is followed by smelting process. When the impurities are
removed follows the slag removal and phase of reduction with natural gas. Reduction is aimed to remove the free oxygen. After the
reduction the process is ended by casting, where the final product is casted into the form of copper anodes.

The Specific Equipment Configuration Depends On The Output.

The refining anodes taken out from the refining furnace is changed into electrolytic copper with purity of 99.99% through an electrolysis process: During electrolysis, copper (II) ions leave the impure copper anode and since they are positive, migrating

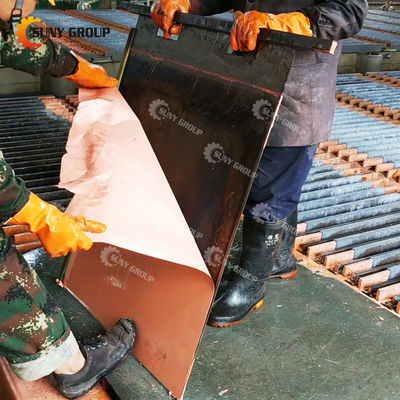

to the negative cathode. From time to time, the pure copper is scraped off the cathode. Impurities from the copper anode, such as
gold, silver, platinum and tin, collect at the bottom of the electrolyte solution, deposited as anode slime.

-----More Details On The Impurities Here

Ag, Au, tin and Pt are more noble than copper, insoluble in this electrolyte and so do not deposit on the cathode. They will be
found as metals in the anode slime;
Soluble impurities of iron and nickel dissolve in the electrolyte, which has to be continually purified to prevent excessive
deposition onto the cathodes, which would reduce the purity of the copper;
Sn, Bi and Sb dissolve anodically but will precipitate in the electrolyte as oxide or hydroxide compounds which will be found in
the anode slime.

PRODUCT FEATURES

1. High current density, shorter anode distance, advanced technology make the electrolytic cycle much shorter.
2. Automatic controlling, compared with other processes, labor costs can be reduced by 50%;
3. The exhaust gas treatment system can produce useful chemicals, creating added value, after processing the tail liquid can be
consistent with national environmental requirements;

TECHNICAL PARAMETERS

Model	ZYDJ-500	ZYDJ-1000	ZYDJ-2000	ZYDJ-5000
Mixed Metal Powder	500 Kg/D	1000 Kg/D	2000 Kg/D	5000 Kg/D
Energy Consumption	280	570	1130	2850
Electrolytic Cycle	15 Days/48H	15 Days/48H	15 Days/48H	15 Days/48H
Copper Capacity	370	750	1500	3750
Copper Purity	99.99%	99.99%	99.99%	99.99%

NOTE:

Working voltage:380±10V(415V ,440V also can be custom);
(If you want more detailed parameters and quotations, please contact us)
