380V/220V Voltage Computer Mother Board Recycling Machine for E-Component Dismantling

Large Image : 380V/220V Voltage Computer Mother Board Recycling Machine for E-Component Dismantling

Product Details:

Place of Origin:	Henan, China
Brand Name:	SUNY

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$5,000.00 - $35,000.00/sets
Packaging Details:	E-Component Dismantling Machine :wooden case/container
Supply Ability:	20 Set/Sets per Month E-Component Dismantling Machine

Contact Now

380V/220V Voltage Computer Mother Board Recycling Machine for E-Component Dismantling

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	New Product 2020
Warranty Of Core Components:	1 Year	Core Components:	PLC, Motor
Warranty:	1 Year, 1 Year	Power (kW):	25
Weight (KG):	1000	Key Selling Points:	High Productivity
Applicable Industries:	Manufacturing Plant	Showroom Location:	Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Alge
Name:	E-Component Dismantling Machine	Capacity:	150kg-1000kg
Voltage:	380V/220V	Raw Material:	Computer Board
Product Name:	Computer Board Dismantling Machine	Color:	Cutomerized
Separation Rate:	99.99%	Usage:	Computer Board Dismantling Machine
Port:	We Default Port Is Qingdao, And Other Chinese Ports Is Ok

Waste PCB Easy Operate Mother Board Components Dismantling Machine

SCRAP PCB DISMANTLING MACHINE

Scrap PCB Dismantling Machine is used to remove the electronic components on different PCB boards, The drumar made of 6mm thickness #45 steel and its own special technology, which have the characteristics of high temperature resistance, abrasion resistance, safety and reliable, stable performance, high precision, durability.

PCB DISMANTLING MACHINE TECHNICAL PARAMETERS

Model	ZYCJ-200	ZYCJ-300	ZYCJ-500
Capacity	200 Kg/H	300 Kg/H	500 Kg/H
Power	5 Kw	7 Kw	14 Kw
Weight	450 Kg	700 Kg	1100 Kg
Dimension (m)	1.670.971.4	1.851.21.52	2.11.271.74

NOTE:

Working Voltage:380V, 415V ,440V or can be customized.
(If you want more detailed PCB Dismantling Machine's parameters and quotations, please contact us)

AUTOMATIC PCB DISMANTLING MACHINE

WORKING PRINCIPLE

Automatic Pcb Dismantling Machine use the nature gas as the heat, the tin will loose when the temperature arrive at 200-300C. These electronic components will be separated because of scraping function between the circuit board when the rotary drum works.

So we can dismantle electronic components from PCB mother board. If our customer want to classify them clearly, then we can equipped with electronic components screen and magnetic machine.

PCB DISMANTLING MACHINE PROCESS

DESCRIPTION

Dismantling machine body—Electronic Component screen —Magnetic Separator
1. PCB dismantling machine body: Dismantle the electronic component from mother board, As for the tin, we also can recycle it;
2. Electronic component screen: Classify the similar size electronic components in one side;
3. Magnetic separator: Further classify these components which include iron or not.

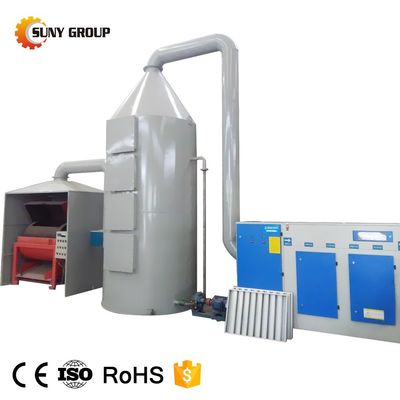

RELATED CONFIGURATION

CUSTOMER SITE

CUSTOMER VISITING
