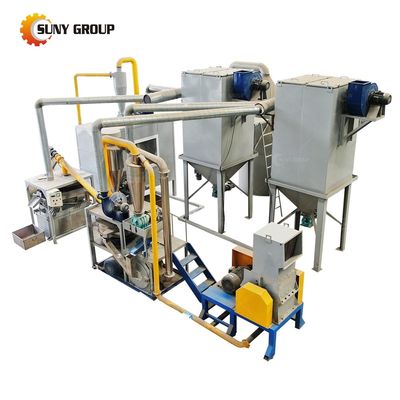

200-1000kg/h Capacity Scrap PCB Grinding Copper Separation Machinery for E-waste Recycling

Large Image : 200-1000kg/h Capacity Scrap PCB Grinding Copper Separation Machinery for E-waste Recycling

Product Details:

Place of Origin:	Henan, China
Brand Name:	SUNY

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$5,000.00 - $65,000.00/sets
Packaging Details:	Waste Computer Phone Wire Copper Cable Separator Scrap Copper Cable Granulating Machines are packaged according to the industry standard.
Supply Ability:	20 Set/Sets per Month Copper Wire Separator Scrap Copper Cable Granulating Machine

Contact Now

200-1000kg/h Capacity Scrap PCB Grinding Copper Separation Machinery for E-waste Recycling

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	New Product 2020
Warranty Of Core Components:	1 Year	Core Components:	PLC
Warranty:	1 Year, 1 Year	Power (kW):	55
Weight (KG):	2500	Key Selling Points:	Automatic
Applicable Industries:	Manufacturing Plant, E-waste Recycle Machine	Showroom Location:	Egypt, Canada, Turkey, United Kingdom, United States, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka,
Name:	E-waste Recycle Machine Scrap Metal Computer Board Recycle Machine	Capacity:	200-1000kg/h
Voltage:	220 V/380 V	Raw Material:	Electronic Waste
Product Name:	E-waste Recycle Machine	Color:	Customer Requirement
Separation Rate:	Separation Rate	Function:	E-waste Recycle Machine Scrap Metal Computer Board Recycle Machine
Usage:	Scrap Copper Recycling	Port:	We Default Port Is Qingdao, And Other Chinese Ports Is Ok

WASTE PCB RECYCLING PLANT

PRODUCT APPLICATION

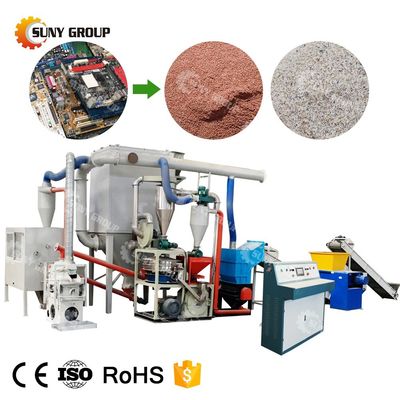

Waste PCB Recycle Plant is used to recycle all kinds of Printed Circuit boards, such as the computer boards, cell phone boards, TV boards, copper-clad laminate, and other household appliances, and the separation of leftover material of the mixed metal and nonmetal materials.

FINAL PRODUCTS

Because of the high value of the metals, fiber and resin, there is no doubt that this plant not only help to change waste into treasure, but also bring great economic benefits.Through years of practice and theoretical analysis, we obtain the best separation result, the separating purity can be reached to 99%.

TECHNICAL PARAMETERS

Model	ZYPCB-300	ZYPCB-500	ZYPCB-1000
Capacity	300 Kg/H	500 Kg/H	1000 Kg/H
Power	102 Kw	134 Kw	194 Kw
Weight	15 Ton	20 Ton	30 Ton
Dimension (m)	2055	2565	3065

NOTE:

Working Voltage:380V, 415V ,440V or can be customized.
(If you want more detailed parameters and quotations, please contact us)

PRODUCT STRUCTURE

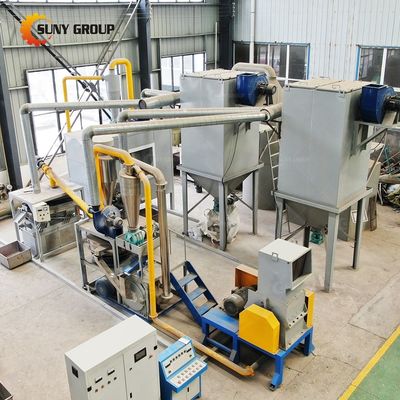

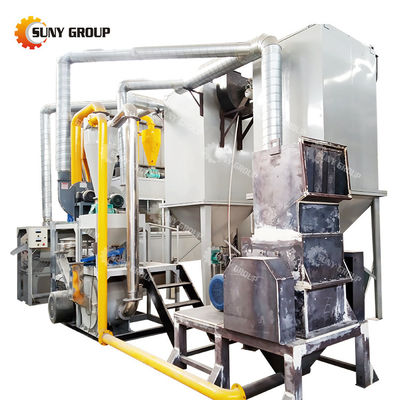

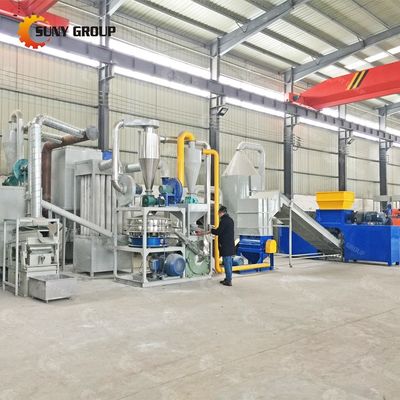

The Waste PCB Recycle Plant consists of shredding system, milling system, sorting system and dust collection system, the whole process is controlled by PLC.

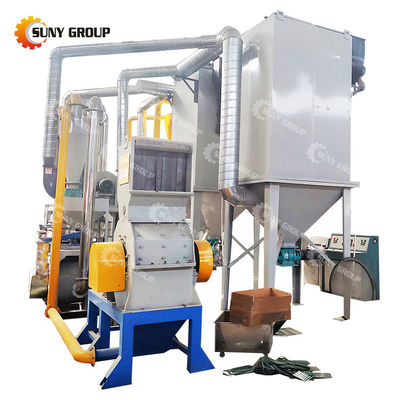

The first crushing machine we choose the double shafts shredder, and the second crushing machine we use the hammer crusher, and the third crushing machine we use the high speed turbine grinding machine, the material after shredding, crushing and grinding will be separated by the air separator and the electrostatic separator.

PRODUCT FEATURES

The Waste PCB Recycle Plant adopts PLC control system, suitable structure and layout, stable performance and low noise;

Dual Crushing System Ensures the Uniformity of Particle Sizes
