300KG Per Hour Scrap Wire Copper PVC Separating Machine with Video Technical Support

Large Image : 300KG Per Hour Scrap Wire Copper PVC Separating Machine with Video Technical Support

Product Details:

Place of Origin:	Henan, China
Brand Name:	SUNY
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$5,000.00 - $35,000.00/sets
Packaging Details:	Waste Scrap Copper Wire Granulator Sale Price are packaged according to the industry standard.
Supply Ability:	5 Set/Sets per Month Copper Wire Separator Scrap Copper Cable Granulating Machine

Contact Now

300KG Per Hour Scrap Wire Copper PVC Separating Machine with Video Technical Support

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	New Product
Warranty Of Core Components:	1 Year	Core Components:	PLC
Warranty:	1 Year	Power (kW):	28, 39, 68, 95
Weight (KG):	5000	Key Selling Points:	High Productivity
Applicable Industries:	Manufacturing Plant, Copper Wire Recycling Plant	Showroom Location:	Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Peru, Indonesia, India, Mexico, Russia, Spain, Thailand, Morocco, South Korea, Chile, UAE, Sri Lanka, Bangladesh, South Africa, Uzbekistan, Japan, Malaysia
Name:	Wire Scrap Recycling Machine	Application:	Wire Granulator Separating Machine
Usage:	Wire Copper Recycling Granulator Machine	Advantage:	Wire And Cable Separation Recycling Equipment
Capacity:	100-1000kg	Voltage:	380V 50Hz 3Phase/Customized
Final Product:	Copper & Plastic	Sorting Rate:	99%
Copper Purity:	100%	After-sales Service Provided:	Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support, Video Technical Support
After Warranty Service:	Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service	Local Service Location:	Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, South Korea, Chile, UAE, Colombia, Sr
Port:	We Default Port Is Qingdao, And Other Chinese Ports Is Ok

Product Application

The Copper Wire Recycling Machine is dry type structure, mainly used to all kinds of waste copper wire, the copper wire will be separated into tiny copper rice and PVC. This machine can recycle the copper wire which diameter is 0. 3mm-20mm. Automobile electrical wire or the electric wire of car, motorcycle electric wire, computer case wire and communication cable, etc.

Final products

Copper Wire Recycling Machine process the waste electric wire and cable into copper and plastic granule. Copper is separated from the plastic, separation efficiency can be 99%. For the copper granule, it can be sold directly or go to further refining. Through our copper electrolysis machine, the copper can be refined into cathode copper in above 99.99% purity. The plastic granules normally are PVC or rubber material, it can also be sold directly.

Product Structure

The Copper Wire Recycling Machine is dry type structure, mainly used to all kinds of waste copper wire, the copper wire will be separated into tiny copper rice and PVC. This machine can recycle the copper wire which diameter is 0.3mm-20mm. Automobile electrical wire or the electric wire of car,motorcycle electric wire, computer case wire and communication cable, etc.

Working process of Copper Wire Recycling Machine

1. Put wasted cable into the crusher machine, they will be cut into granules first. during this process, copper and plastic areseparated but still mixed together.

2.Then the granules are sent to air separator for separation, according to the gravity difference and through air blow, the copper and plastics are separated success sully and comes out from different sides.

3. At last we collect the separated pure copper and plastic.

Details

Product Parameters

Model	Capacity	Weight	Size (m)	Power
ZY-TMJ100	100-200kg/h	1850kg	2.2x2x2.3	28kw
ZY-TMJ300	200 300kg/h	2500kg	3.2x2.1x2.3	39kw
ZY-TMJ500	400-500kg/h	3850kg	6.2x5x3.3	68kw
ZY-TMJ800	700-800kg/h	5500kg	10.4x2.1x3.3	75kw
ZY-TMJ1000	800-1000kg/h	8200kg	12x4.1x4.5	95kw

Process Description

For the small capacity, the cable wires raw materials can be put into the al-in-one machine directly, after crushing, it will using the Air separation system to make the copper and plastic suspended on the screen. Then it can separate the Copper from the plastic by weighting method and the friction force which produced by the Surface of the mesh.

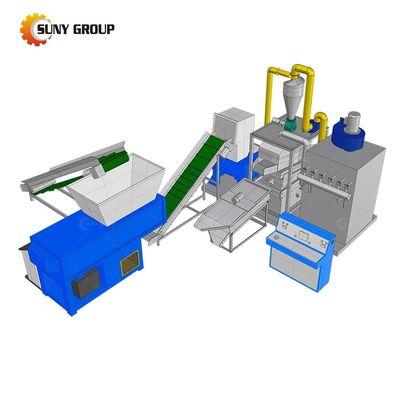

For larger capacity, the cable wires raw materials will be firstly put into the shredder, then go into crusher to get the small pieces wires, then our pulse air separator machine will make the copper and plastic suspended on the screen to separate the Copper from the plastic by weighting method and the friction force which produced by the Surface of the mesh. To improve the purity and capacity, the rest materials will be go into our high voltage electrostatic separator. This model system including the first crusher, pulse air separator, dust and fiber collection system and high voltage electrostatic separator.

Product Feature
