NO Smell E Waste Scrap Pcb Recycling Plant for Sustainable Precious Metals Recycling

Large Image : NO Smell E Waste Scrap Pcb Recycling Plant for Sustainable Precious Metals Recycling

Product Details:

Place of Origin:	China, China (Mainland)
Brand Name:	SUNY
Model Number:	ZY-15

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$15,000.00 - $65,000.00/sets
Packaging Details:	Lithium Battery Shredding Plant:Standard Exported Package or 20ft/40ft container
Supply Ability:	20 Set/Sets per Month Lithium Battery Shredding Plant

Contact Now

NO Smell E Waste Scrap Pcb Recycling Plant for Sustainable Precious Metals Recycling

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	New Product 2020
Warranty Of Core Components:	1 Year	Core Components:	PLC, Motor
Warranty:	1 Year	Power (kW):	25
Weight (KG):	3000	Key Selling Points:	Sustainable
Applicable Industries:	Manufacturing Plant	Showroom Location:	Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Alge
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Capacity:	50-200KG/H
Material:	Ewaste,computer,mobile,CPU,IC Chips	Recovery Rate:	99.9%
Installation:	Turn-Key Installation	Power:	Based On The Capacity
Smell:	NO	Smoke:	NO
Port:	Qingdao Tianjin Shanghai Or Other Port In China As Your Request

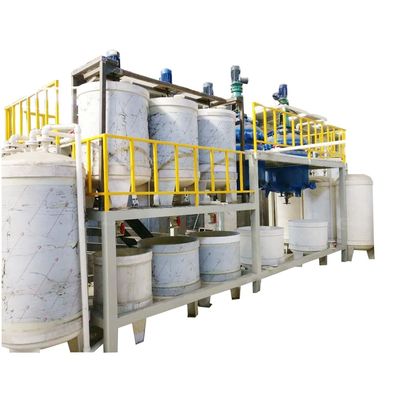

PRECIOUS METAL REFINING PLANT

APPLICATION

Precious Metal Refining Plant is used for recovery and refining precious metals such as gold, silver, palladium and platinum from electronic waste containing precious metal chip components and anode mud.

TECHNICAL PARAMETERS

Model	Capacity	Power	Recycle Rate	Purity
ZYGJ-100	100 Kg/Day	20 Kw	≥99%	≥99%
ZYGJ-200	200 Kg/Day	30 Kw	≥99%	≥99%
ZYGJ-300	300 Kg/Day	40 Kw	≥99%	≥99%

RAW MATERIAL

The raw materials are various chips containing precious metals and anode mud, the chips mainly include MLCC, North-South Bridge,Memory Chip, Chip Capacitor, etc.

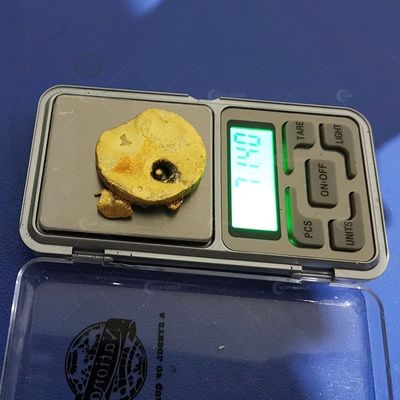

AFTER EXTRACTION

Precious Metal Refining Plant is used for recovery refining precious metals such as gold, silver, palladium and platinum from electronic waste containing precious metal chip components and anode mud.

PROCESS INTRODUCTION

For some components dismanlted from circuit boards, some of them surface plated gold, such as CPU, it will be first to do surface stripping process, to remove and extract the surface gold firstly, the following is the CPU before stripped and after stripped comparison.

Most part Precious metals are contain in the IC chips, MLCC and some memory card, these materials will be go into our Precious metals recovery system to processing, to recovery the precious metals, such as gold, silver, pd etc.

The detailed processing step as: for the above materials will be firstly to put into our special designed carbonization furnace to smetling, to demage the plastic, Second is to grinding into the fine powder, Third is to do the chemical leaching, will be recovery the gold, silver, palladium orderly, as the following drawing.

TECHNICAL CHARACTERISTICS

The recycle rate of gold, slivr can get more than 99%

The purity of the precious metal can get 99.9%

The process is short, use the hydrometallurgical without cyanogens technology, reduce pollution to the environment

The operation process is highly automated, saving labor costs

The precious metal refining project we sell supports engineers to install on-side and provide on-site technical training to customers

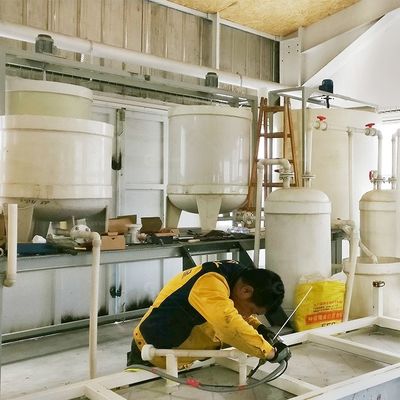

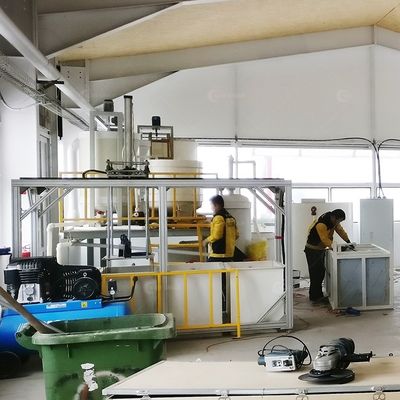

CUSTOMER SITE
