High Capacity Computer Board Dismantling Machine for E-Component Recycling and Desoldering

Large Image : High Capacity Computer Board Dismantling Machine for E-Component Recycling and Desoldering

Product Details:

Place of Origin:	China
Brand Name:	SUNY
Model Number:	ZY-300

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$5,000.00 - $35,000.00/sets
Packaging Details:	Waste Computer Phone Wire Copper Cable Separator Scrap Copper Cable Granulating Machines are packaged according to the industry standard.
Supply Ability:	20 Set/Sets per Month Copper Wire Separator Scrap Copper Cable Granulating Machine

Contact Now

High Capacity Computer Board Dismantling Machine for E-Component Recycling and Desoldering

Description

Condition:	New	Applicable Industries:	Manufacturing Plant
Showroom Location:	Egypt, Canada, Turkey, United Kingdom, Italy, France, Germany, Philippines, Peru, Saudi Arabia, Indonesia, Pakistan, India, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Romania, Bangladesh, South Africa, K	Type:	PCB Dismantling Machine
Warranty:	1 Year, 1 Year	Power:	25
Production Capacity:	1000KG/H	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Marketing Type:	New Product 2021
Warranty Of Core Components:	1 Year	Core Components:	PLC
Weight (KG):	700 Kg	Name:	China Automatic Scrap Circuit Board PCB Dismantling Machine
Capacity:	150kg-1000kg	Voltage:	380V/220V
Raw Material:	Computer Board	Product Name:	Computer Board Dismantling Machine
Color:	Cutomerized	Separation Rate:	99.99%
Usage:	Computer Board Dismantling Machine	Application:	Computer Board Dismantling Machine
Port:	We Default Port Is Qingdao, And Other Chinese Ports Is Ok

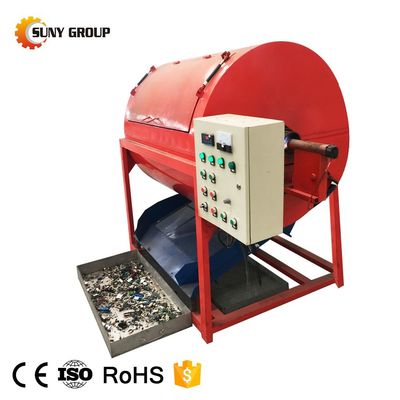

AUTOMATIC HIGH EFFICIENCY PCB DISMANTLING MACHINE

AUTOMATIC HIGH EFFICIENCY PCB DISMANTLING MACHINE DESCRIPTION

Automatic High Efficiency Pcb Dismantling Machine is used to remove the electronic components on different PCB boards, The drumar made of 6mm thickness #45 steel and its own special technology, which have the characteristics of high temperature resistance, abrasion resistance, safety and reliable, stable performance, high precision, durability.

PCB DISMANTLING MACHINE TECHNICAL PARAMETERS

Model	ZYCJ-200	ZYCJ-300	ZYCJ-500
Capacity	200 Kg/H	300 Kg/H	500 Kg/H
Power	5 Kw	7 Kw	14 Kw
Weight	450 Kg	700 Kg	1100 Kg
Dimension (m)	1.670.971.4	1.851.21.52	2.11.271.74

NOTE:

Working Voltage:380V, 415V ,440V or can be customized.
(If you want more detailed automatic pcb dismantling machine's parameters and quotations, please contact us)

PCB DISMANTLING MACHINE WORKING PRINCIPLE

Our Automatic Pcb Dismantling Machine use the nature gas as the heat, the tin will loose when the temperature arrive at 200-300C. These electronic components will be separated because of scraping function between the circuit board when the rotary drum works.

So we can dismantle electronic components from PCB mother board. If our customer want to classify them clearly, then we can equipped with electronic components screen and magnetic machine.

PCB DISMANTLING MACHINE PROCESS

Dismantling machine body—Electronic Component screen —Magnetic Separator
1. PCB dismantling machine body: Dismantle the electronic component from mother board, As for the tin, we also can recycle it;

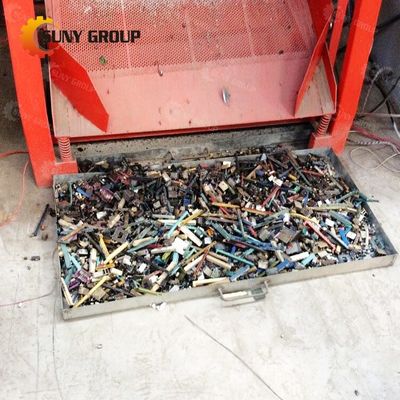

2. Electronic component screen: Classify the similar size electronic components in one side;
3. Magnetic separator: Further classify these components which include iron or not.

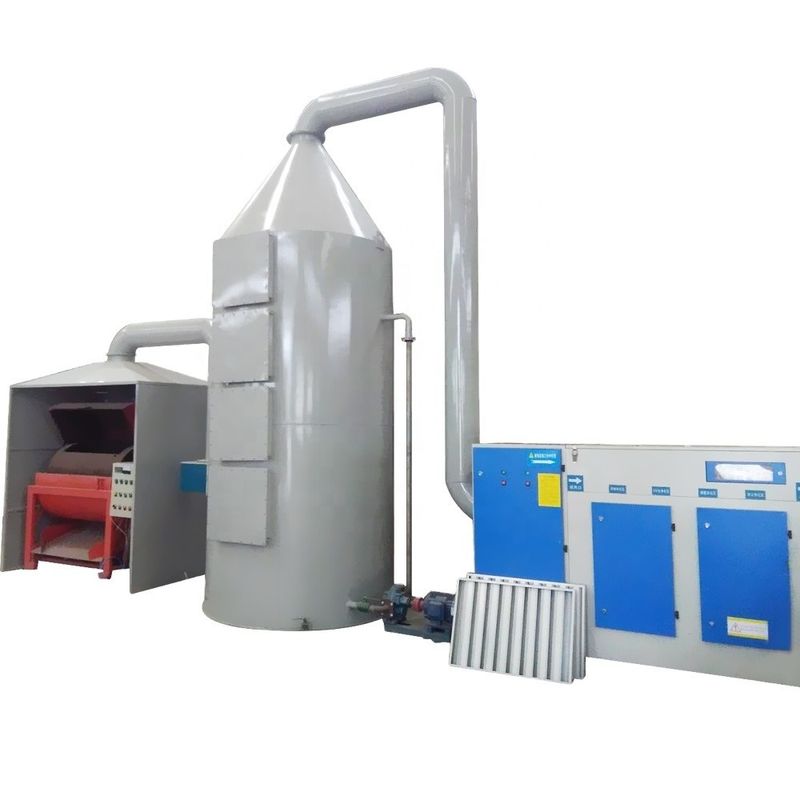

RELATED CONFIGURATION

CUSTOMER SITE

CUSTOMER VISITING
