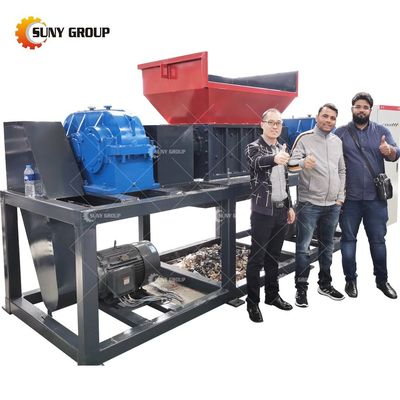

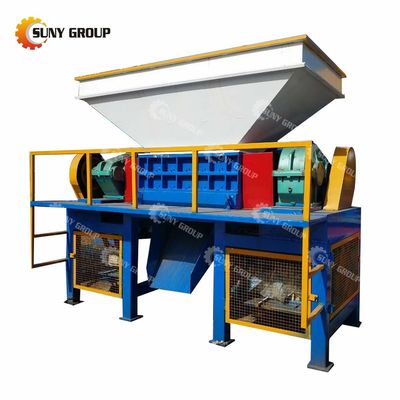

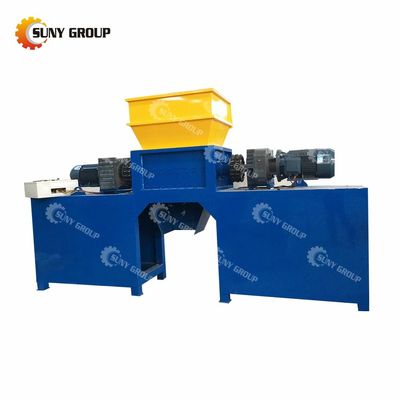

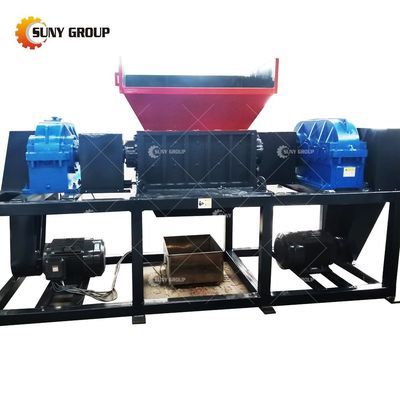

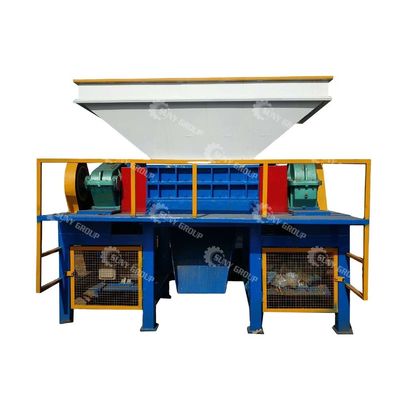

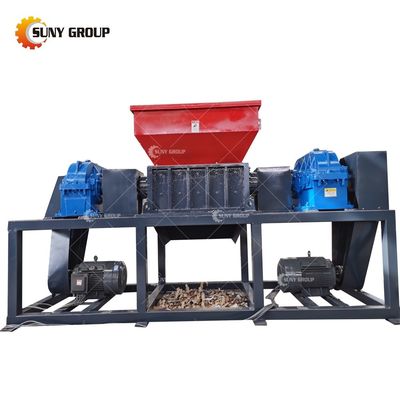

15000W Double Shaft Shredder for Waste Wee Scrap Tires Plastic Industrial Aluminum Can

Large Image : 15000W Double Shaft Shredder for Waste Wee Scrap Tires Plastic Industrial Aluminum Can

Product Details:

Place of Origin:	Henan, China
Brand Name:	SUNY

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$15,000.00 - $68,000.00/sets
Packaging Details:	Waste Computer Phone Wire Copper Cable Separator Scrap Copper Cable Granulating Machines are packaged according to the industry standard.
Supply Ability:	5 Set/Sets per Month Copper Wire Separator Scrap Copper Cable Granulating Machine

Contact Now

15000W Double Shaft Shredder for Waste Wee Scrap Tires Plastic Industrial Aluminum Can

Description

Condition:	New	Plastic Type:	PVC, PET, ABS, PP/PE, PE, PP, PC, PMMA, PA
Machine Type:	Double Shaft Shredder	Max.Production Capacity (kg/h):	3500
Production Capacity (kg/h):	1000 - 3500 Kg/h	Use:	Plastic Waste Crushing
Voltage:	15000W	Dimension(LWH):	260190210cm
Power (kW):	15	Weight (T):	3.3
Warranty:	1 Year, 1year	Applicable Industries:	Manufacturing Plant
Key Selling Points:	Full Automatic	Showroom Location:	Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sr
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	PLC
Application:	Double Shaft Shredder	Product Name:	Industrial Paper Shredder
Blades Material:	9CrSi/D2/SKD-11	Color:	Client's Requirements
Weight:	2300KG	Power(W):	15000W
Capacity:	800-5000kg/h	Advantage:	Blades Can Be Customized
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Marketing Type:	New 2021
Port:	We Default Port Is Qingdao, And Other Chinese Ports Is Ok

SUITABLE RAW MATERIALS

1. All kinds of hollow containers: plastic beverage cans, plastic buckets, iron drums, packing boxes,packing drums.
2. Used household appliances: TV, washing machine, refrigerator shell.
3. Pipe material: large pipe, pipe fitting and PE pipe.
4. Used templates: wooden pallets, plastic pallets and forklifts.
5. Used tires: car tires, truck tires.
6. Scrap metal: automobile housing, aluminum alloy, scrap cast aluminum parts, engine housing, lead and steel plates with thickness below 5mm.
7. Cooking garbage, living garbage, RDF derivative, medical waste, biological orange pole, garden garbage.
8. Glue head material, paper mill rope.

DOUBLE SHAFT SHREDDER MAIN STRUCTURES

1. Shaft, moving blades, fixed blades, reducer, motors, feeding hopper, discharge port, electric control cabinet,control panel,screen, roller, knives holder, ect.
2. After shreddering, the dimension of most large plastic or other material will reduce 30%, some material dimenison after shreddering can up to 50%.
(We have arranged many videos. Please contact us freely if you need.)

We design the blades with different hooks, and the thickness of blades for different materials are different, the range is 10mm-80mm. Blade quality have 9CrSi, Cr12MoV, SKD-II, D2 etc.

The main body of the shredder is welded with high quality steel plate to eliminate stress treatment/integral machining to ensure the stability of the equipment under heavy load for a long time

Knife shaft is is made of special special alloy tool steel forging blank, precision machining, multiple heat treatment, and reasonably provided powerful power for cutting, increase service life.

Our double shaft shredder adopts button control, easy to operate, set up, stop, reverse, overload protection and other functions.

DOUBLE SHAFT SHREDDER WORKING PRINCIPLE

1.Feed hopper: Put the material to be crushed, so as to prevent the material from splashing out;
2.Double shaft cutting system:Using different blades according customers' material;
3.Power system:We choose famous brands of motor in China, can also be configured according to customer needs;
4.Discharging conveyor system:It adopts independent power system, and that power system is integrally fixed on the shredder by bolts, so that the power system can be integrally drawn out.

AUTOMATIC DOUBLE SHAFT SHREDDER TECHNICAL PARAMETERS

Model	ZY-D600	ZY-D800	ZY-D1000	ZY-D1200
Motor power (kw)	7.5+7.5	15+15	18.5+18.5	30+30
Capacity (kg/h)	500-600	700-800	800-1000	1000-1200
Cutter (pcs)	22	30	30	36
Shredding room size (mm)	600x430	800x430	1000x500	1000x580
Weight (kg)	2300	3300	5000	6800

NOTE:

1. The above shredder is our standard configuration. For different raw materials to be shredded, the configuration might be different. Please feel free to contact us for detailed information or special request;
2. We have welding, removable and integral blade holders for our single shaft shredder. You can communicate with our sales representative to confirm the suitable blade holder.

FAQ

Q: Why Choose Us?
1). Several Year's Experience
We have rich experience in equipment manufacturing. Our machines have high reputation both at home and abroad (Such as the Middle East, Southeast Asia, Africa and so on more than 10 countries and regions.)

2). Manufacturer, Not Dealer
Factory direct sale makes price more competitive.Customers are always welcome to visit our factory for machine test.

3). Fast Delivery
We promise the goods can be shipped out on delivery date after confirmation of the order.

Q: How do I know the quality of your machine?
A: You can send your sample scrap materials to us and we will test the machine for you without charging the fees. And we can send
the machine test video to you. We also warmly welcome you to visit our factory to test our machine personally.

Q: When we only purchase one shredder machine production line, can we use it to shred other scrap materials like?
A: Yes, you can.It depends on the difference of blades teeth and quantity, which can be customized.

Q: Which brand of motor will you use?
A: We use domestic motor manufatured by Chinese-famous suppliers, but you can choose Siemens or other brand motor. Don't worry
about our machine's quality.

Q: Will you dispatch the engineer to guide installation?
A: Yes, according to the customer's requirement, we will dispatch engineers to guide installation and traning about the operation
of the machine.
