-Assured Waste Motherboard Component Desoldering Machine for Video outgoing-inspection

Certification
China Henan Zhengyang Machinery Equipment Co., Ltd. certification
I'm Online Chat Now

-Assured Waste Motherboard Component Desoldering Machine for Video outgoing-inspection

-Assured Waste Motherboard Component Desoldering Machine for Video outgoing-inspection
-Assured Waste Motherboard Component Desoldering Machine for Video outgoing-inspection -Assured Waste Motherboard Component Desoldering Machine for Video outgoing-inspection -Assured Waste Motherboard Component Desoldering Machine for Video outgoing-inspection -Assured Waste Motherboard Component Desoldering Machine for Video outgoing-inspection -Assured Waste Motherboard Component Desoldering Machine for Video outgoing-inspection -Assured Waste Motherboard Component Desoldering Machine for Video outgoing-inspection

Large Image :  -Assured Waste Motherboard Component Desoldering Machine for Video outgoing-inspection

Product Details:
Place of Origin: Henan, China
Brand Name: SUNY
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $5,000.00 - $35,000.00/sets
Packaging Details: Waste Motherboard Component Desoldering Machine are packaged according to the industry standard.
Supply Ability: 20 Set/Sets per Month Waste Motherboard Component Desoldering Machine

-Assured Waste Motherboard Component Desoldering Machine for Video outgoing-inspection

Description
Condition: New Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year Core Components: PLC, Motor
Warranty: 1 Year, 1 Year Power (kW): 25
Weight (KG): 1000 Key Selling Points: High Productivity
Applicable Industries: Manufacturing Plant Showroom Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Alge
Name: Waste Motherboard Component Desoldering Machine Capacity: 150kg-1000kg
Voltage: 380V/220V Raw Material: Computer Board
Product Name: Computer Board Dismantling Machine Color: Cutomerized
Separation Rate: 99.99% Usage: Computer Board Dismantling Machine
Application: Computer Board Dismantling Machine After-sales Service Provided: Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support, Video Technical Support
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service Local Service Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea
Port: We Default Port Is Qingdao, And Other Chinese Ports Is Ok

Waste PCB Easy Operate Mother Board Components Dismantling Machine
-Assured Waste Motherboard Component Desoldering Machine for Video outgoing-inspection 0

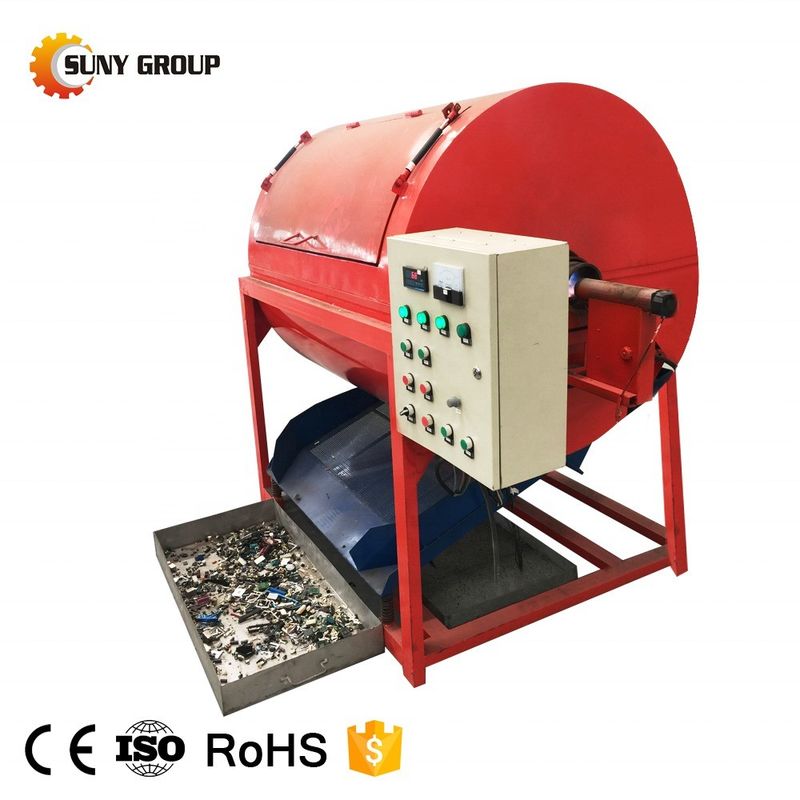

SCRAP PCB DISMANTLING MACHINE


Scrap PCB Dismantling Machine is used to remove the electronic components on different PCB boards, The drumar made of 6mm thickness #45 steel and its own special technology, which have the characteristics of high temperature resistance, abrasion resistance, safety and reliable, stable performance, high precision, durability.
-Assured Waste Motherboard Component Desoldering Machine for Video outgoing-inspection 1
PCB DISMANTLING MACHINE TECHNICAL PARAMETERS
Model
ZYCJ-200
ZYCJ-300
ZYCJ-500
Capacity
200 Kg/H
300 Kg/H
500 Kg/H
Power
5 Kw
7 Kw
14 Kw
Weight
450 Kg
700 Kg
1100 Kg
Dimension (m)
1.67*0.97*1.4
1.85*1.2*1.52
2.1*1.27*1.74
NOTE:
Working Voltage:380V, 415V ,440V or can be customized.
(If you want more detailed PCB Dismantling Machine's parameters and quotations, please contact us)


AUTOMATIC PCB DISMANTLING MACHINE

WORKING PRINCIPLE


Automatic Pcb Dismantling Machine use the nature gas as the heat, the tin will loose when the temperature arrive at 200-300C. These electronic components will be separated because of scraping function between the circuit board when the rotary drum works.
-Assured Waste Motherboard Component Desoldering Machine for Video outgoing-inspection 2
So we can dismantle electronic components from PCB mother board. If our customer want to classify them clearly, then we can equipped with electronic components screen and magnetic machine.
-Assured Waste Motherboard Component Desoldering Machine for Video outgoing-inspection 3


PCB DISMANTLING MACHINE PROCESS

DESCRIPTION


Dismantling machine body—Electronic Component screen —Magnetic Separator
1. PCB dismantling machine body: Dismantle the electronic component from mother board, As for the tin, we also can recycle it;
2. Electronic component screen: Classify the similar size electronic components in one side;
3. Magnetic separator: Further classify these components which include iron or not.
-Assured Waste Motherboard Component Desoldering Machine for Video outgoing-inspection 4

RELATED CONFIGURATION
-Assured Waste Motherboard Component Desoldering Machine for Video outgoing-inspection 5
-Assured Waste Motherboard Component Desoldering Machine for Video outgoing-inspection 6
-Assured Waste Motherboard Component Desoldering Machine for Video outgoing-inspection 7
-Assured Waste Motherboard Component Desoldering Machine for Video outgoing-inspection 8
-Assured Waste Motherboard Component Desoldering Machine for Video outgoing-inspection 9
-Assured Waste Motherboard Component Desoldering Machine for Video outgoing-inspection 10
CUSTOMER SITE
-Assured Waste Motherboard Component Desoldering Machine for Video outgoing-inspection 11
CUSTOMER VISITING
-Assured Waste Motherboard Component Desoldering Machine for Video outgoing-inspection 12
-Assured Waste Motherboard Component Desoldering Machine for Video outgoing-inspection 13
-Assured Waste Motherboard Component Desoldering Machine for Video outgoing-inspection 14
-Assured Waste Motherboard Component Desoldering Machine for Video outgoing-inspection 15
