Scrap Electronic PCB Computer Board Recycling System Machine for Manufacturing Plant

Large Image : Scrap Electronic PCB Computer Board Recycling System Machine for Manufacturing Plant

Product Details:

Place of Origin:	Henan, China
Brand Name:	SUNY
Model Number:	ZY-300

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$50,000.00/sets >=1 sets
Packaging Details:	Waste Computer Phone Wire Copper Cable Separator Scrap Copper Cable Granulating Machines are packaged according to the industry standard.
Supply Ability:	5 Set/Sets per Month

Contact Now

Scrap Electronic PCB Computer Board Recycling System Machine for Manufacturing Plant

Description

Condition:	New	Applicable Industries:	Manufacturing Plant
Showroom Location:	Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, South Korea, Chile, UAE, Algeria, Romania, Bangladesh, Sout	Type:	Circuit Board Recycling Machine
Warranty:	1 Year, 1 Year	Power:	55
Material:	Pcb Circuit Board Recycling Machine	Production Capacity:	300KG/H
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Marketing Type:	New Product	Warranty Of Core Components:	1 Year
Core Components:	PLC	Weight (KG):	2500 Kg
Name:	E-waste Recycle Machine Scrap Metal Computer Board Recycle Machine	Capacity:	200-1000kg/h
Voltage:	220 V/380 V	Raw Material:	Electronic Waste
Product Name:	E-waste Recycle Machine	Color:	Customer Requirement
Separation Rate:	Separation Rate	Function:	E-waste Recycle Machine Scrap Metal Computer Board Recycle Machine
Usage:	Scrap Copper Recycling	Port:	Qingdao Port

Waste Circuit Board Recycling Machine

Pcb Circuit Board Recycling Machine Introduction

Pcb circuit board recycling machine is mainly used for the separation of metal and non-metal in waste circuit board, copper clad plate, circuit board and scrap material.The successful development of the pcb circuit board recycling machine not only improves the quality of recovered copper, but also prevents secondary pollution.

This waste pcb circuit board recycling machine takes two stages to crush the waste circuit board to make it into a mixture of metal and resin fiber powder.The metal is then separated from the resin by wind and electrostatic separation.In order to prevent dust pollution in the process of processing, a pulse dust removal device is added after the airflow separation process to effectively solve the problem of dust pollution.

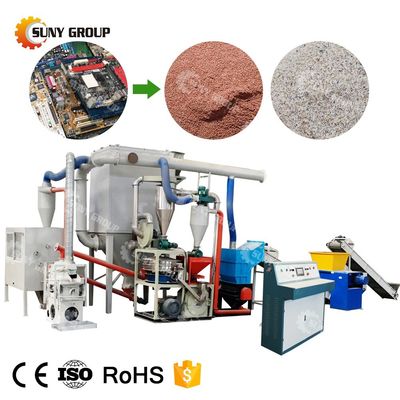

FINAL PRODUCTS

Because of the high value of the metals, fiber and resin, there is no doubt that this waste circuit board plant not only help to change waste into treasure, but also bring great economic benefits.Through years of practice and theoretical analysis, we obtain the best separation result, the separating purity can be reached to 99%.

TECHNICAL PARAMETERS

Model	ZYPCB-300	ZYPCB-500	ZYPCB-1000
Capacity	300 Kg/H	500 Kg/H	1000 Kg/H
Power	102 Kw	134 Kw	194 Kw
Weight	15 Ton	20 Ton	30 Ton
Dimension (m)	2055	2565	3065

NOTE:

Working Voltage:380V, 415V ,440V or can be customized.
(If you want more detailed parameters and quotations, please contact us)

PRODUCT STRUCTURE

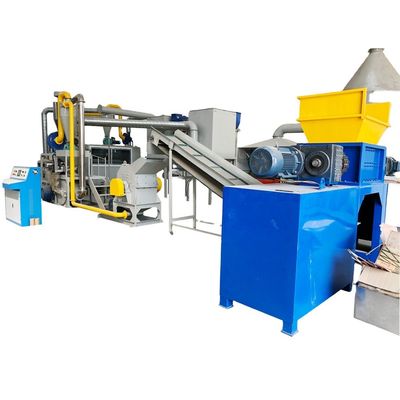

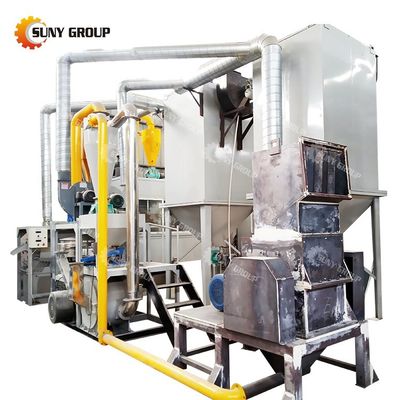

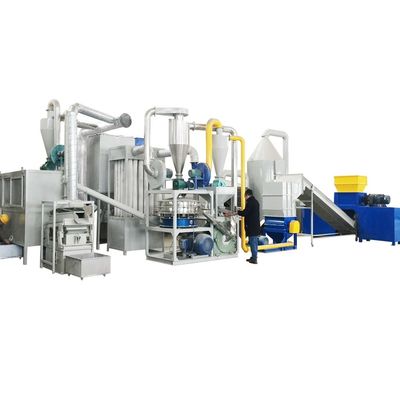

The Waste PCB Recycle Plant consists of shredding system, milling system, sorting system and dust collection system, the whole process is controlled by PLC.

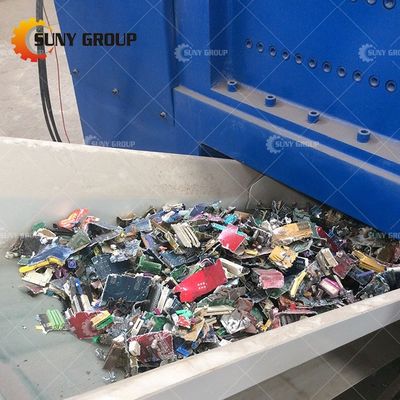

The first crushing machine we choose the double shafts shredder, and the second crushing machine we use the hammer crusher, and the third crushing machine we use the high speed turbine grinding machine, the material after shredding, crushing and grinding will be separated by the air separator and the electrostatic separator.

PRODUCT FEATURES

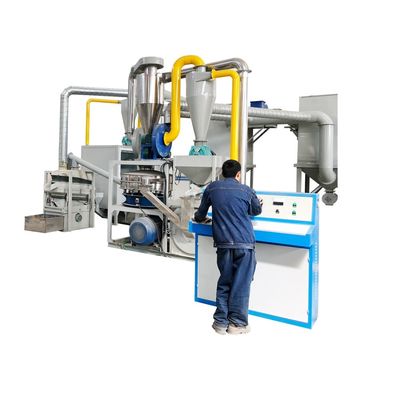

The Waste PCB Recycle Plant adopts PLC control system, suitable structure and layout, stable performance and low noise.

1.The circuit board crusher is adopted to carry out the new process of mechanical grinding and high voltage electrostatic separation.After disassembly, crushing and dissociation, the metal and non-metal objects are separated with high purity.The separation purity of the whole circuit board recovery equipment reaches more than 99.5% 2.The key technology is to organically combine the special crushing and dissociating equipment of various waste circuit boards to achieve greater energy saving effect in the production process and achieve a high metal separation rate; 3.The unit energy consumption of circuit board recycling equipment is only about 3/5 of that of domestic similar products per ton of waste circuit board;A single set of equipment with a high capacity of 1 ton per hour 4.The price of circuit board recovery equipment is only 1/5-1/3 of similar equipment at home and abroad, and the recovery rate of copper is 3%-5% higher than that of similar manufacturers; 5.Good comprehensive performance, for computer board, computer board, TV board and other line control board has a unique effect.The recovery of various circuit boards containing capacitor parts is also compatible; 6.Circuit board recycling equipment production line is the upgrading of wind type selection products, less power consumption than wind type selection, and no noise, less manual automation procedures, high efficiency, while occupying a small area, is the ideal production line for recycling of waste circuit boards; 7. Less labor, no pollution, no noise, PCB recovery equipment placement with flexibility.

Dual Crushing System Ensures the Uniformity of Particle Sizes
