Waste Pcb Dismantling Machine Fully Automatic Electric Components Dismantling Equipment

Waste Pcb Dismantling Machine Fully Automatic Electric Components Dismantling Equipment
Waste Pcb Dismantling Machine Fully Automatic Electric Components Dismantling Equipment Waste Pcb Dismantling Machine Fully Automatic Electric Components Dismantling Equipment Waste Pcb Dismantling Machine Fully Automatic Electric Components Dismantling Equipment Waste Pcb Dismantling Machine Fully Automatic Electric Components Dismantling Equipment Waste Pcb Dismantling Machine Fully Automatic Electric Components Dismantling Equipment Waste Pcb Dismantling Machine Fully Automatic Electric Components Dismantling Equipment

Large Image :  Waste Pcb Dismantling Machine Fully Automatic Electric Components Dismantling Equipment

Product Details:
Place of Origin: China
Brand Name: SUNY
Model Number: ZY-300
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $5,000.00 - $35,000.00/sets
Packaging Details: Waste Computer Phone Wire Copper Cable Separator Scrap Copper Cable Granulating Machines are packaged according to the industry standard.
Supply Ability: 20 Set/Sets per Month Copper Wire Separator Scrap Copper Cable Granulating Machine

Waste Pcb Dismantling Machine Fully Automatic Electric Components Dismantling Equipment

Description
Condition: New Applicable Industries: Manufacturing Plant
Showroom Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Type: Waste Pcb Dismantling Machine
Warranty: 1 Year, 1 Year Power: 25
Production Capacity: 1000KG/H Machinery Test Report: Provided
Video Outgoing-inspection: Provided Marketing Type: New 2021 Pcb Dismantling Machine
Warranty Of Core Components: 1 Year Core Components: PLC
Name: China Automatic Scrap Circuit Board PCB Dismantling Machine Capacity: 150kg-1000kg
Voltage: 380V/220V Raw Material: Computer Board
Product Name: Computer Board Dismantling Machine Color: Cutomerized
Separation Rate: 99.99% Usage: Computer Board Dismantling Machine
Application: Computer Board Dismantling Machine After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea After-sales Service Provided: Video Technical Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support
Port: We Default Port Is Qingdao, And Other Chinese Ports Is Ok

Fully Automatic Electric Components Dismantling Machine Printed Circuit Board Dismantling Equipment
Waste Pcb Dismantling Machine Fully Automatic Electric Components Dismantling Equipment 0

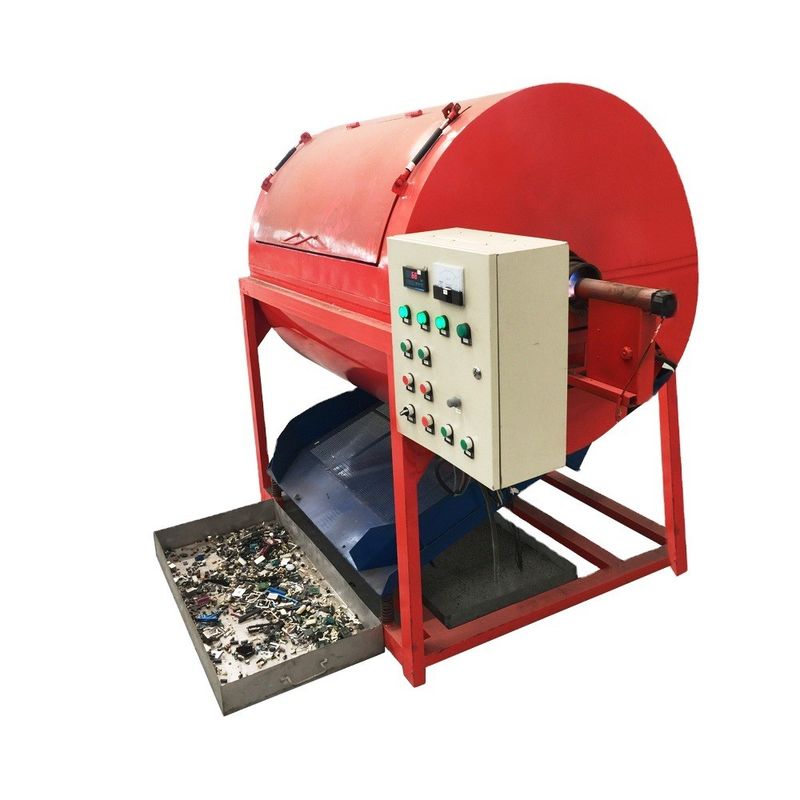

FULLY AUTOMATIC ELECTRONIC COMPONENTS DISMANTLING MACHINE DESCRIPTION


Fully Automatic Electronic Components Dismantling Machine is used to remove the electronic components on different PCB boards, The drumar made of 6mm thickness #45 steel and its own special technology, which have the characteristics of high temperature resistance, abrasion resistance, safety and reliable, stable performance, high precision, durability.
Waste Pcb Dismantling Machine Fully Automatic Electric Components Dismantling Equipment 1
ELECTRONIC COMPONENTS DISMANTLING MACHINE TECHNICAL PARAMETERS
Model
ZYCJ-200
ZYCJ-300
ZYCJ-500
Capacity
200 Kg/H
300 Kg/H
500 Kg/H
Power
5 Kw
7 Kw
14 Kw
Weight
450 Kg
700 Kg
1100 Kg
Dimension (m)
1.67*0.97*1.4
1.85*1.2*1.52
2.1*1.27*1.74
NOTE:
Working Voltage:380V, 415V ,440V or can be customized.
(If you want more detailed PCB electronic components dismantling machine's parameters and quotations, please contact us)

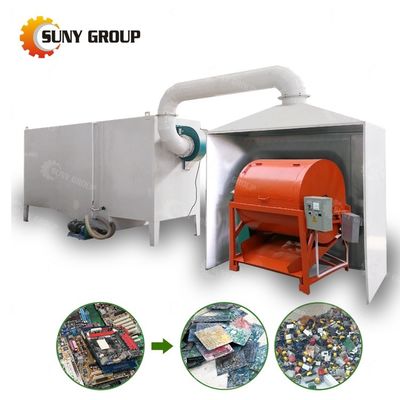

ELECTRONIC COMPONENTS DISMANTLING MACHINE WORKING PRINCIPLE


This electronic components dismantling machine use the nature gas as the heat, the tin will loose when the temperature arrive at 200-300C. These electronic components will be separated because of scraping function between the circuit board when the rotary drum works.
Waste Pcb Dismantling Machine Fully Automatic Electric Components Dismantling Equipment 2
So we can dismantle electronic components from PCB mother board. If our customer want to classify them clearly, then we can equipped with electronic components screen and magnetic machine.
Waste Pcb Dismantling Machine Fully Automatic Electric Components Dismantling Equipment 3


PCB DISMANTLING MACHINE WORKING PROCESS


Dismantling machine body—Electronic Component screen —Magnetic Separator
1. PCB dismantling machine body: Dismantle the electronic component from mother board, As for the tin, we also can recycle it;
2. Electronic component screen: Classify the similar size electronic components in one side;
3. Magnetic separator: Further classify these components which include iron or not.
Waste Pcb Dismantling Machine Fully Automatic Electric Components Dismantling Equipment 4

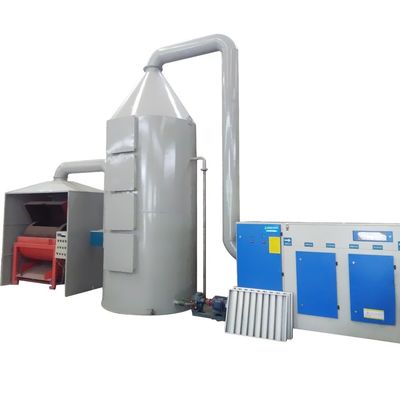

ELECTRONIC COMPONENTS DISMANTLING MACHINE RELATED CONFIGURATION
Waste Pcb Dismantling Machine Fully Automatic Electric Components Dismantling Equipment 5
Waste Pcb Dismantling Machine Fully Automatic Electric Components Dismantling Equipment 6
Waste Pcb Dismantling Machine Fully Automatic Electric Components Dismantling Equipment 7
Waste Pcb Dismantling Machine Fully Automatic Electric Components Dismantling Equipment 8
Waste Pcb Dismantling Machine Fully Automatic Electric Components Dismantling Equipment 9
Waste Pcb Dismantling Machine Fully Automatic Electric Components Dismantling Equipment 10
CUSTOMER SITE
Waste Pcb Dismantling Machine Fully Automatic Electric Components Dismantling Equipment 11
CUSTOMER VISITING
Waste Pcb Dismantling Machine Fully Automatic Electric Components Dismantling Equipment 12
Waste Pcb Dismantling Machine Fully Automatic Electric Components Dismantling Equipment 13
Waste Pcb Dismantling Machine Fully Automatic Electric Components Dismantling Equipment 14
Waste Pcb Dismantling Machine Fully Automatic Electric Components Dismantling Equipment 15
