Pcb Dismantling Machine 1000KG/H Raw material Computer Board for Scrap Circuit Board

Pcb Dismantling Machine 1000KG/H Raw material Computer Board for Scrap Circuit Board
Pcb Dismantling Machine 1000KG/H Raw material Computer Board for Scrap Circuit Board Pcb Dismantling Machine 1000KG/H Raw material Computer Board for Scrap Circuit Board Pcb Dismantling Machine 1000KG/H Raw material Computer Board for Scrap Circuit Board Pcb Dismantling Machine 1000KG/H Raw material Computer Board for Scrap Circuit Board Pcb Dismantling Machine 1000KG/H Raw material Computer Board for Scrap Circuit Board Pcb Dismantling Machine 1000KG/H Raw material Computer Board for Scrap Circuit Board

Large Image :  Pcb Dismantling Machine 1000KG/H Raw material Computer Board for Scrap Circuit Board

Product Details:
Place of Origin: China
Brand Name: SUNY
Model Number: ZY-300
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $5,000.00 - $35,000.00/sets
Packaging Details: Waste Computer Phone Wire Copper Cable Separator Scrap Copper Cable Granulating Machines are packaged according to the industry standard.
Supply Ability: 20 Set/Sets per Month Copper Wire Separator Scrap Copper Cable Granulating Machine

Pcb Dismantling Machine 1000KG/H Raw material Computer Board for Scrap Circuit Board

Description
Condition: New Applicable Industries: Manufacturing Plant
Showroom Location: Egypt, Canada, Turkey, United Kingdom, Italy, France, Germany, Philippines, Peru, Saudi Arabia, Indonesia, Pakistan, India, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Romania, Bangladesh, South Africa, K Type: PCB Dismantling Machine
Warranty: 1 Year, 1 Year Power: 25
Production Capacity: 1000KG/H Machinery Test Report: Provided
Video Outgoing-inspection: Provided Marketing Type: New Product 2021
Warranty Of Core Components: 1 Year Core Components: PLC
Name: China Automatic Scrap Circuit Board PCB Dismantling Machine Capacity: 150kg-1000kg
Voltage: 380V/220V Raw Material: Computer Board
Product Name: Computer Board Dismantling Machine Color: Cutomerized
Separation Rate: 99.99% Usage: Computer Board Dismantling Machine
Application: Computer Board Dismantling Machine After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea After-sales Service Provided: Video Technical Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support
Port: We Default Port Is Qingdao, And Other Chinese Ports Is Ok

High Recovery Rate PCB Mother Boards Dismantling Machine
Pcb Dismantling Machine 1000KG/H Raw material Computer Board for Scrap Circuit Board 0

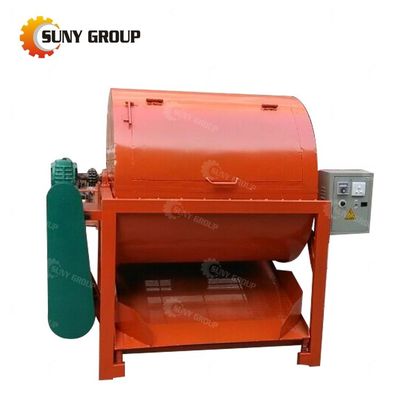

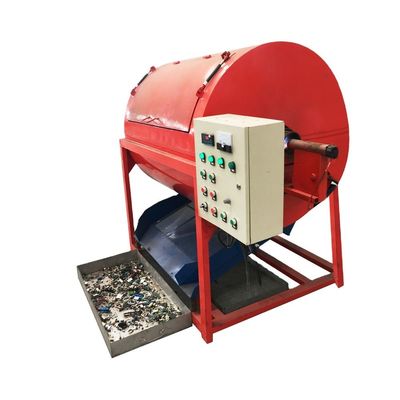

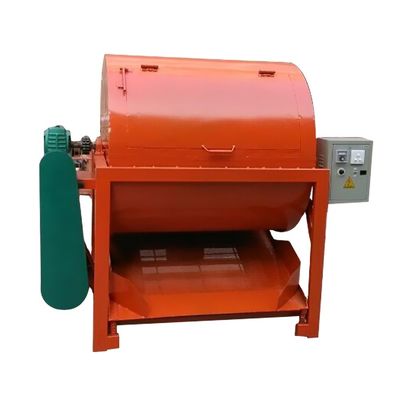

WASTE PCB MOTHERBOARD DISMANTLING MACHINE DESCRIPTION

Waste Pcb Motherboard Dismantling Machine is used to remove the electronic components on different PCB boards, The drumar made of 6mm thickness #45 steel and its own special technology, which have the characteristics of high temperature resistance, abrasion resistance, safety and reliable, stable performance, high precision, durability.
Pcb Dismantling Machine 1000KG/H Raw material Computer Board for Scrap Circuit Board 1
PCB DISMANTLING MACHINE TECHNICAL PARAMETERS
Model
ZYCJ-200
ZYCJ-300
ZYCJ-500
Capacity
200 Kg/H
300 Kg/H
500 Kg/H
Power
5 Kw
7 Kw
14 Kw
Weight
450 Kg
700 Kg
1100 Kg
Dimension (m)
1.67*0.97*1.4
1.85*1.2*1.52
2.1*1.27*1.74
NOTE:
Working Voltage:380V, 415V ,440V or can be customized.
(If you want more detailed parameters and quotations, please contact us)


PCB DISMANTLING MACHINE WORKING PRINCIPLE


Use the nature gas as the heat, the tin will loose when the temperature arrive at 200-300C. These electronic components will be separated because of scraping function between the circuit board when the rotary drum works.
Pcb Dismantling Machine 1000KG/H Raw material Computer Board for Scrap Circuit Board 2

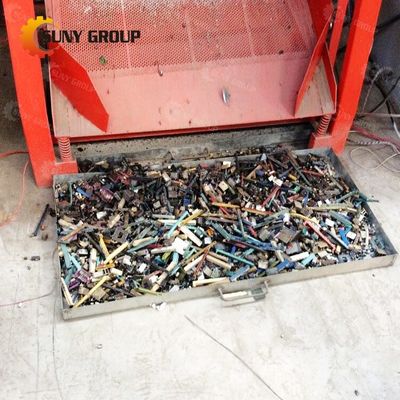

So we can dismantle electronic components from PCB mother board. If our customer want to classify them clearly, then we can equipped with electronic components screen and magnetic machine.
Pcb Dismantling Machine 1000KG/H Raw material Computer Board for Scrap Circuit Board 3


PROCESS DESCRIPTION


Dismantling machine body—Electronic Component screen —Magnetic Separator
1. PCB dismantling machine body: Dismantle the electronic component from mother board, As for the tin, we also can recycle it;
2. Electronic component screen: Classify the similar size electronic components in one side;
3. Magnetic separator: Further classify these components which include iron or not.
Pcb Dismantling Machine 1000KG/H Raw material Computer Board for Scrap Circuit Board 4

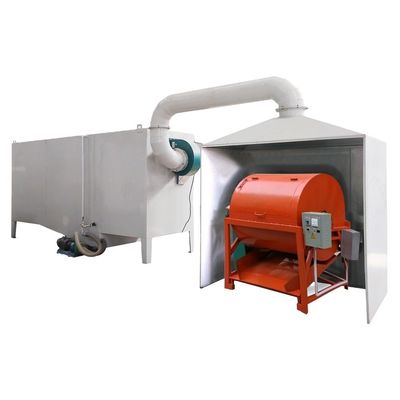

RELATED CONFIGURATION
Pcb Dismantling Machine 1000KG/H Raw material Computer Board for Scrap Circuit Board 5
Pcb Dismantling Machine 1000KG/H Raw material Computer Board for Scrap Circuit Board 6
Pcb Dismantling Machine 1000KG/H Raw material Computer Board for Scrap Circuit Board 7
Pcb Dismantling Machine 1000KG/H Raw material Computer Board for Scrap Circuit Board 8
Pcb Dismantling Machine 1000KG/H Raw material Computer Board for Scrap Circuit Board 9
Pcb Dismantling Machine 1000KG/H Raw material Computer Board for Scrap Circuit Board 10
CUSTOMER SITE
Pcb Dismantling Machine 1000KG/H Raw material Computer Board for Scrap Circuit Board 11
CUSTOMER VISITING
Pcb Dismantling Machine 1000KG/H Raw material Computer Board for Scrap Circuit Board 12
Pcb Dismantling Machine 1000KG/H Raw material Computer Board for Scrap Circuit Board 13
Pcb Dismantling Machine 1000KG/H Raw material Computer Board for Scrap Circuit Board 14
Pcb Dismantling Machine 1000KG/H Raw material Computer Board for Scrap Circuit Board 15
