Computer Board PCB Component Automatic PCB Dismantling Machine for Green Disassembly

Certification
China Henan Zhengyang Machinery Equipment Co., Ltd. certification
I'm Online Chat Now

Computer Board PCB Component Automatic PCB Dismantling Machine for Green Disassembly

Computer Board PCB Component Automatic PCB Dismantling Machine for Green Disassembly
Computer Board PCB Component Automatic PCB Dismantling Machine for Green Disassembly Computer Board PCB Component Automatic PCB Dismantling Machine for Green Disassembly Computer Board PCB Component Automatic PCB Dismantling Machine for Green Disassembly Computer Board PCB Component Automatic PCB Dismantling Machine for Green Disassembly Computer Board PCB Component Automatic PCB Dismantling Machine for Green Disassembly Computer Board PCB Component Automatic PCB Dismantling Machine for Green Disassembly

Large Image :  Computer Board PCB Component Automatic PCB Dismantling Machine for Green Disassembly

Product Details:
Place of Origin: Henan, China
Brand Name: SUNY
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $5,500.00 - $8,000.00/sets
Packaging Details: Waste Computer Phone Wire Copper Cable Separator Scrap Copper Cable Granulating Machines are packaged according to the industry standard.
Supply Ability: 20 Set/Sets per Month Copper Wire Separator Scrap Copper Cable Granulating Machine

Computer Board PCB Component Automatic PCB Dismantling Machine for Green Disassembly

Description
Condition: New Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year Core Components: PLC, Motor
Warranty: 1 Year, 1 Year Power (kW): 25
Weight (KG): 1000 Key Selling Points: High Productivity
Applicable Industries: Manufacturing Plant Showroom Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Alge
Name: Waste PCB Scrap Dismantling Machine Capacity: 150kg-1000kg
Voltage: 380V/220V Raw Material: Computer Board
Product Name: Computer Board Dismantling Machine Color: Cutomerized
Separation Rate: 99.99% Usage: Computer Board Dismantling Machine
Application: Computer Board Dismantling Machine After-sales Service Provided: Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support, Video Technical Support
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service Local Service Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea
Port: We Default Port Is Qingdao, And Other Chinese Ports Is Ok

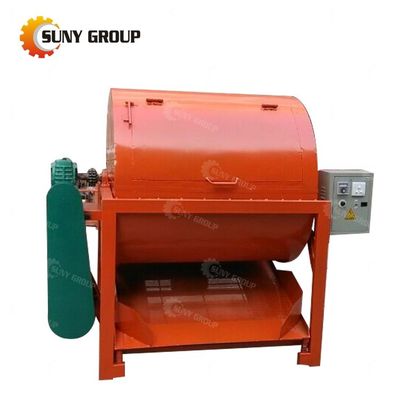

PCB COMPONENTS DISMANTLING MACHINE
Computer Board PCB Component Automatic PCB Dismantling Machine for Green Disassembly 0


PRODUCT DESCRIPTION


PCB Components Dismantling Machine is used to remove the electronic components on different PCB boards, The drumar made of 6mm thickness #45 steel and its own special technology, which have the characteristics of high temperature resistance, abrasion resistance, safety and reliable, stable performance, high precision, durability.
Computer Board PCB Component Automatic PCB Dismantling Machine for Green Disassembly 1
TECHNICAL PARAMETERS
Model
ZYCJ-200
ZYCJ-300
ZYCJ-500
Capacity
200 Kg/H
300 Kg/H
500 Kg/H
Power
5 Kw
7 Kw
14 Kw
Weight
450 Kg
700 Kg
1100 Kg
Dimension (m)
1.67*0.97*1.4
1.85*1.2*1.52
2.1*1.27*1.74
NOTE:
Working Voltage:380V, 415V ,440V or can be customized.
(If you want more detailed parameters and quotations, please contact us)


WORKING PRINCIPLE


Use the nature gas as the heat, the tin will loose when the temperature arrive at 200-300C. These electronic components will be separated because of scraping function between the circuit board when the rotary drum works.
Computer Board PCB Component Automatic PCB Dismantling Machine for Green Disassembly 2
So we can dismantle electronic components from PCB mother board. If our customer want to classify them clearly, then we can equipped with electronic components screen and magnetic machine.
Computer Board PCB Component Automatic PCB Dismantling Machine for Green Disassembly 3


PROCESS DESCRIPTION


Dismantling machine body—Electronic Component screen —Magnetic Separator
1. PCB dismantling machine body: Dismantle the electronic component from mother board, As for the tin, we also can recycle it;
2. Electronic component screen: Classify the similar size electronic components in one side;
3. Magnetic separator: Further classify these components which include iron or not.
Computer Board PCB Component Automatic PCB Dismantling Machine for Green Disassembly 4

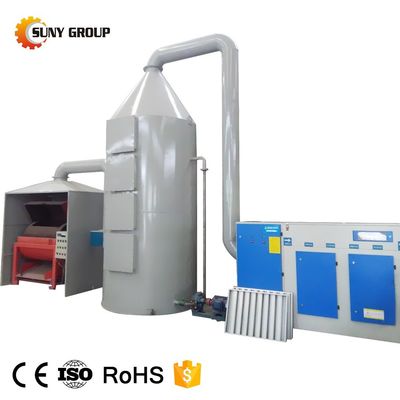

RELATED CONFIGURATION
Computer Board PCB Component Automatic PCB Dismantling Machine for Green Disassembly 5
Computer Board PCB Component Automatic PCB Dismantling Machine for Green Disassembly 6
Computer Board PCB Component Automatic PCB Dismantling Machine for Green Disassembly 7
Computer Board PCB Component Automatic PCB Dismantling Machine for Green Disassembly 8
Computer Board PCB Component Automatic PCB Dismantling Machine for Green Disassembly 9
Computer Board PCB Component Automatic PCB Dismantling Machine for Green Disassembly 10

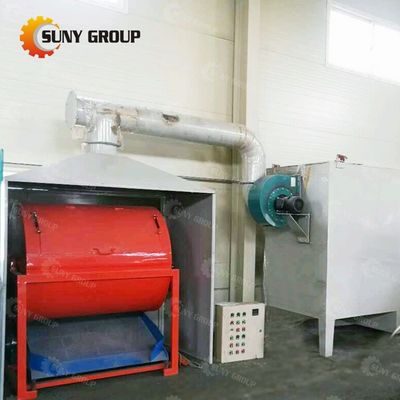

CUSTOMER SITE
Computer Board PCB Component Automatic PCB Dismantling Machine for Green Disassembly 11
CUSTOMER VISITING
Computer Board PCB Component Automatic PCB Dismantling Machine for Green Disassembly 12
Computer Board PCB Component Automatic PCB Dismantling Machine for Green Disassembly 13
Computer Board PCB Component Automatic PCB Dismantling Machine for Green Disassembly 14
Computer Board PCB Component Automatic PCB Dismantling Machine for Green Disassembly 15
